Horn Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the horn. (See HORN REMOVAL/INSTALLATION .)
  4. Apply battery positive voltage to horn terminal A, and connect the horn retaining bolt to ground as shown in the figure, and then verify that the horn sounds.

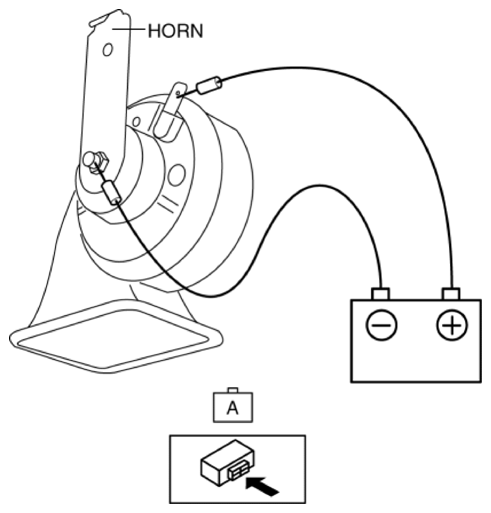

    Fig 1: Applying Battery Positive Voltage To Horn Terminal
    G10939779Courtesy of MAZDA MOTORS CORP.
    • If the horn does not sound, replace the horn.
