Rear Drive Shaft Disassembly/Assembly: Notes

Special Service Tool (SST)

49 T025 001
Boot clamp crimpers

Courtesy of MAZDA MOTORS CORP.

Replacement Part

Boot band (differential side) Quantity: 2 Location of use:Boot (differential side)	Snap ring Quantity: 1 Location of use: Tripod joint	Boot (differential side) Quantity: 1 Location of use: Rear drive shaft (differential side)
Boot band (wheel side) Quantity: 2 Location of use: Boot (wheel side)	Boot (wheel side) Quantity: 1 Location of use: Rear drive shaft (wheel side)	-

Oil and Chemical Type

Grease

Type: Maintenance parts

CAUTION:

Do not allow a magnetized tool such as a magnetized screwdriver to come into contact with the ABS sensor rotor. If the ABS sensor rotor becomes magnetized it will be unable to read the ABS wheel speed sensor waveform correctly resulting in an ABS system malfunction to be determined and the inability to perform ABS control. If a magnetized object comes into contact with the ABS sensor rotor, it will be necessary to newly replace the rear drive shaft (ABS sensor rotor).

Assemble in the reverse order of removal.

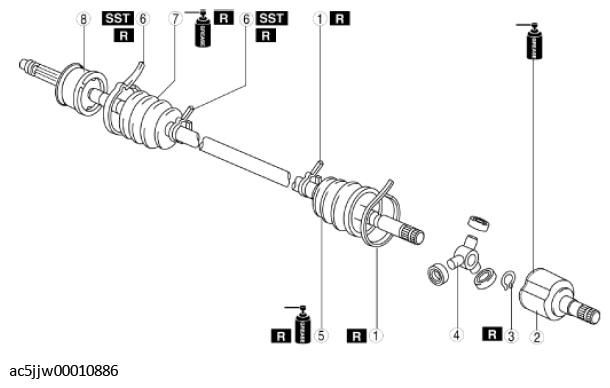

Fig 1: Rear Drive Shaft Parts Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Boot band (differential side) (See Boot Band (Differential Side) Disassembly Note .) (See Boot Band (Differential Side) Assembly Note .)
2	Outer ring (See Outer Ring Disassembly Note .) (See Outer Ring Assembly Note .)
3	Snap ring (See Snap Ring, Tripod Joint Disassembly Note .) (See Tripod Joint, Snap Ring Assembly Note .)
4	Tripod joint (See Snap Ring, Tripod Joint Disassembly Note .) (See Tripod Joint, Snap Ring Assembly Note .)
5	Boot (differential side) (See Boot (Differential Side) Disassembly Note .) (See Boot (Differential Side) Assembly Note .)
6	Boot band (wheel side) (See Boot (Wheel Side) Disassembly Note .) (See Boot (Wheel Side) Assembly Note .)
7	Boot (wheel side) (See Boot (Wheel Side) Disassembly Note .) (See Boot (Wheel Side) Assembly Note .)
8	Shaft and ball joint component
