Front Door Hinge Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front door. (See FRONT DOOR REMOVAL/INSTALLATION .)
  3. Remove the bolts.

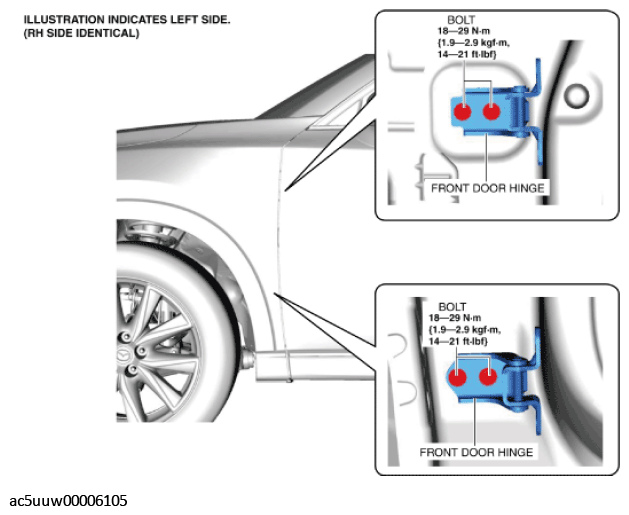

    Fig 1: Front Door Hinge Bolts With Torque Specifications
    G11425924Courtesy of MAZDA MOTORS CORP.
  4. Remove the front door hinge.
  5. Install in the reverse order of removal.
  6. Adjust the front door. (See DOOR ADJUSTMENT .)
