MAZDA Radar Cruise Control (MRCC) System Location Index

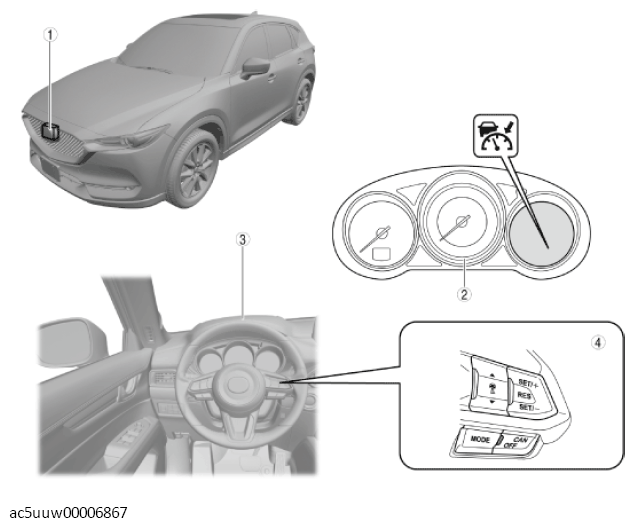

Fig 1: Mazda Radar Cruise Control (MRCC) System Parts Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Radar unit (See RADAR UNIT REMOVAL/INSTALLATION .) (See RADAR UNIT DISASSMBLY/ASSEMBLY .) (See RADAR UNIT AIMING .) (See RADAR UNIT INSPECTION .) (See MRCC INITIALIZATION SETTING .)
2	INSTRUMENT CLUSTER (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION .) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE .) (See MAINTENANCE MONITOR OPERATION PROCEDURE .)
3	ACTIVE DRIVING DISPLAY (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .) (See ACTIVE DRIVING DISPLAY INSPECTION .)
4	Cruise control switch (See CRUISE CONTROL SWITCH REMOVAL/INSTALLATION [MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM] .)) (See CRUISE CONTROL SWITCH INSPECTION [MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM] .)
