Radar Unit DISASSMBLY/Assembly

  1. Disassemble in the order indicated in the table.

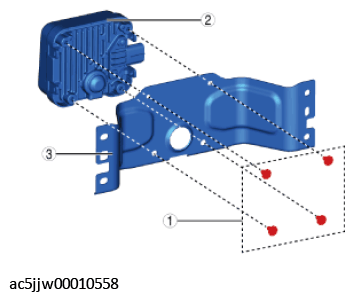

    Fig 1: Disassembling Radar Unit
    G11432231Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw
    2 Radar unit
    3 Radar unit bracket
  2. Assemble in the reverse order of disassembly.
