Tuner And Amp Unit (Tau) Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
    5. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    6. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    7. Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION .)
  3. Disconnect the connectors.

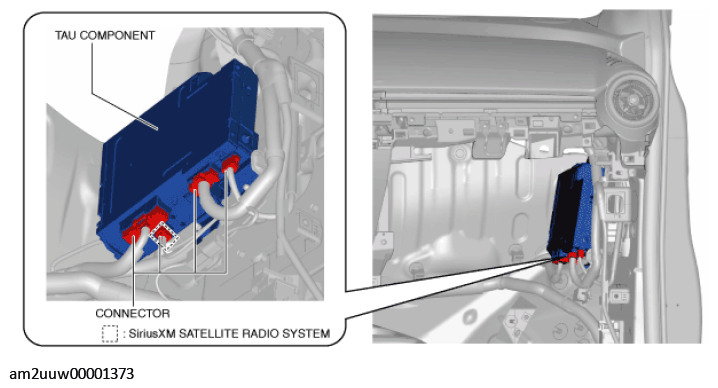

    Fig 1: Disconnecting Connectors
    G11434074Courtesy of MAZDA MOTORS CORP.
  4. Remove the nuts.

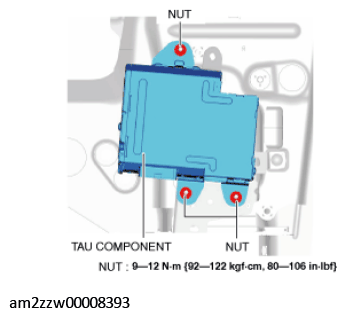

    Fig 2: Removing AMP Unit (TAU) Component Nuts
    G11434075Courtesy of MAZDA MOTORS CORP.
  5. Remove the tuner and amp unit (TAU) component.
  6. Remove the screws.

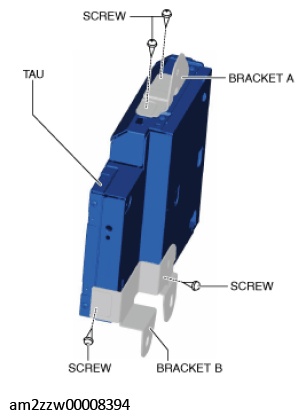

    Fig 3: Removing Screws
    G11434076Courtesy of MAZDA MOTORS CORP.
  7. Remove the brackets A and B.
  8. Install in the reverse order of removal.
