Glove Compartment Removal/Installation

Open the glove compartment.

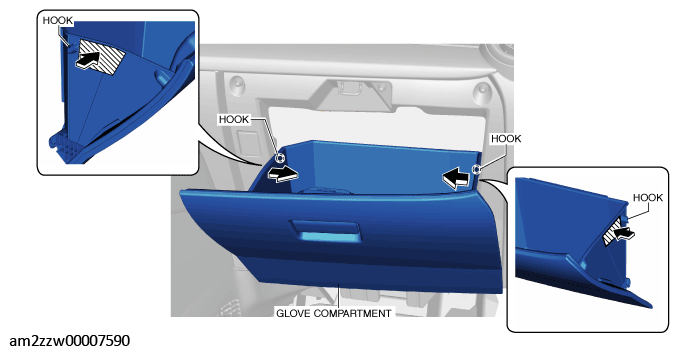

Press both ends of the glove compartment in the directions of the arrows shown in the figure and detach the hooks.

Fig 1: Pressing Both Ends Of Glove Compartment
Courtesy of MAZDA MOTORS CORP.

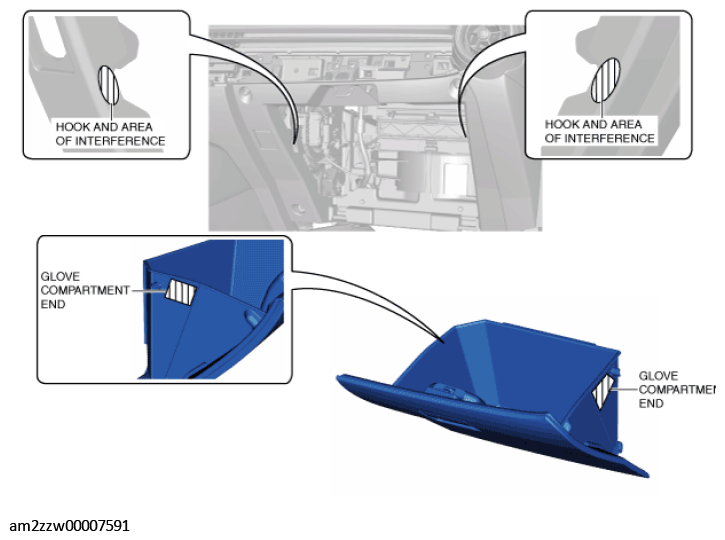

CAUTION:
- When detaching the hooks, the hooks could interfere with the passenger-side lower panel and cause scratches or damage. When detaching the hooks, press the ends of the glove compartment so that the hooks do not interfere with the passenger-side lower panel.
Fig 2: Detaching Hooks
Courtesy of MAZDA MOTORS CORP.

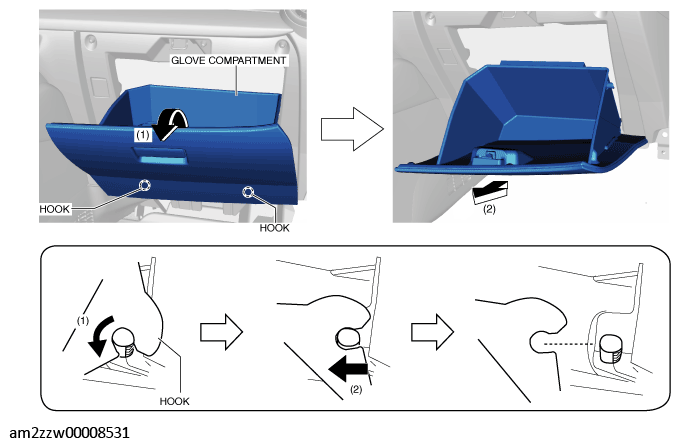

Lower the glove compartment in the direction of arrow (1) shown in the figure.

Fig 3: Lowering Glove Compartment
Courtesy of MAZDA MOTORS CORP.
Move the glove compartment in the direction of arrow (2) shown in the figure and remove it while detaching the hooks.
Install in the reverse order of removal.
