Trunk Side Trim Removal/Installation

  1. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    6. Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION .)
  2. Remove the fasteners.

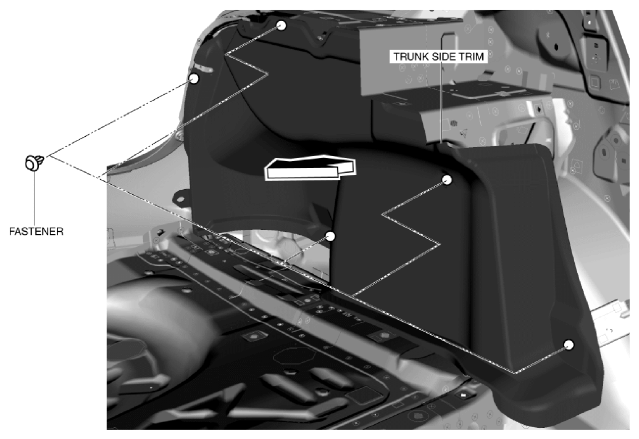

    Fig 1: Removing Trunk Side Trim
    G11012012Courtesy of MAZDA MOTORS CORP.
  3. Remove the trunk side trim in the direction of the arrow shown in the figure.
  4. Install in the reverse order of removal.
