Trunk Side Pocket Removal/Installation

  1. Partially peel back the floor covering.
  2. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)
  3. Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION .)
  4. Remove the fasteners. (LH side only)

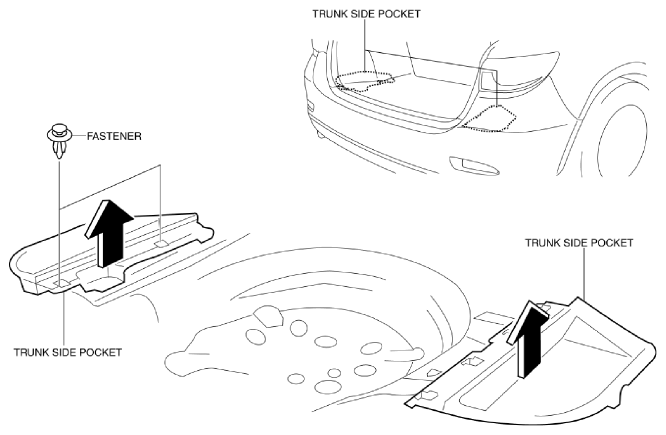

    Fig 1: Removing Trunk Side Pocket
    G11012028Courtesy of MAZDA MOTORS CORP.
  5. Remove the trunk side pocket in the direction of the arrow shown in the figure.
  6. Install in the reverse order of removal.
