Trunk End Trim Removal/Installation

  1. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.
  3. Remove fasteners.

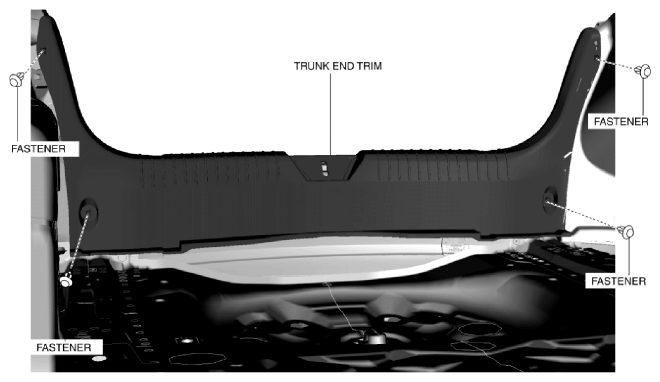

    Fig 1: Identifying Trunk End Trim And Fasteners
    G11012010Courtesy of MAZDA MOTORS CORP.
  4. Pull the trunk end trim in the direction of the arrow in the order of (1), (2) shown in the figure while detaching clips, pins, and guides.

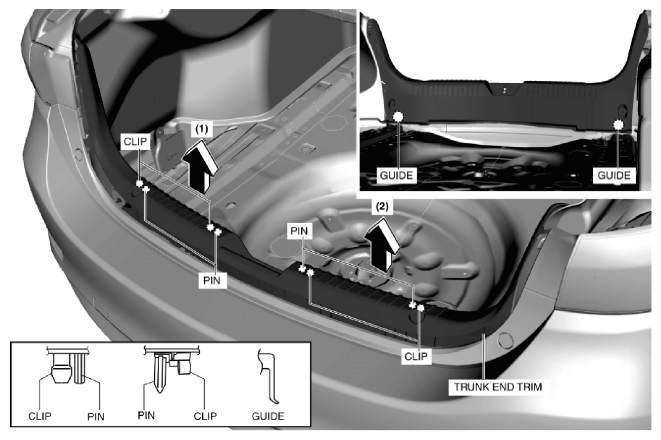

    Fig 2: Pulling Trunk End Trim
    G11012011Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
