Fuel-filler Lid Opener

Remove the following parts:
1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
Pull back the trunk side trim (LH) to a position which allows for the removal of the fuel-filler lid opener. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
Open the fuel-filler lid.

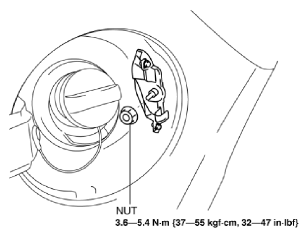

Remove the nut.

Fig 1: Identifying Fuel-Filler Lid Opener Nut With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Perform the following procedure to secure an operation space.

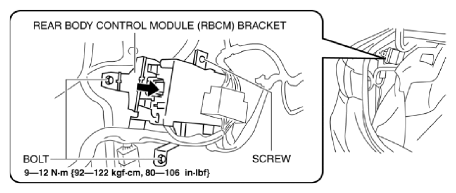

  - Remove the bolts.

    Fig 2: Removing RBCM Bracket From Vehicle Body
    Courtesy of MAZDA MOTORS CORP.
  - Remove the screw.
  - Remove the rear body control module (RBCM) bracket from the vehicle body in the direction of the arrow shown in the figure.

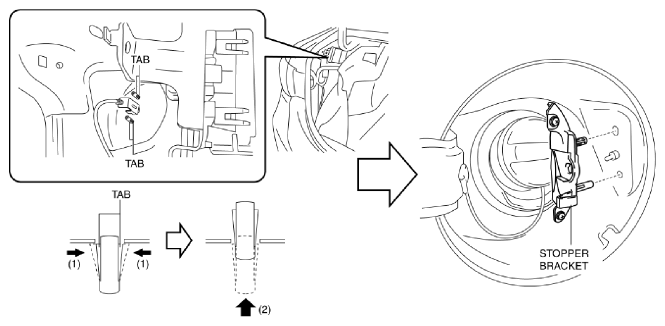

While pressing the tabs of the stopper bracket in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach it from the body.

Fig 3: Pressing Stopper Bracket Tabs
Courtesy of MAZDA MOTORS CORP.
Detach all the stopper bracket tabs from the body and remove the stopper bracket.
Remove the fuel-filler lid opener in the direction of the arrow.

Fig 4: Removing Fuel-Filler Lid Opener
Courtesy of MAZDA MOTORS CORP.
Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener.

Fig 5: Disconnecting Fuel-Filler Lid Opener Cable From Fuel-Filler Lid Opener
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
