Without center display

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear seat cushion (RH) (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    4. Rear seat side back (RH) (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION .)
    5. C-pillar trim (RH) (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect antenna feeder No. 1.
    Fig 1: Identifying Antenna Feeder (No. 1 And No. 2)
    G10988216Courtesy of MAZDA MOTORS CORP.
  4. Disconnect antenna amplifier.

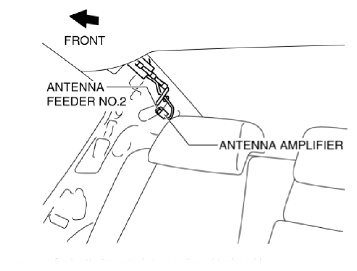

    Fig 2: Identifying Antenna Feeder No. 2 And Antenna Amplifier
    G10988217Courtesy of MAZDA MOTORS CORP.
  5. Verify that the continuity between antenna feeder No. 2 terminals is as indicated in the table.
    Fig 3: Checking Antenna Feeder No. 2 Terminal Continuity
    G10988218Courtesy of MAZDA MOTORS CORP.
    Fig 4: Antenna Feeder No. 2 Terminal Continuity Chart
    G10988219Courtesy of MAZDA MOTORS CORP.
