A-Pillar Trim Removal/Installation

Partially peel back the seaming welt.
Grasp the shaded areas shown in the figure, and pull the A-pillar trim in the direction of the arrow while detaching clips A, clip B.

Fig 1: Pulling Out A-Pillar Trim
Courtesy of MAZDA MOTORS CORP.
Cut the lead wire connecting clips B and grommet using a nipper.

Fig 2: Cutting Lead Wire Connecting Clips B And Grommet Using Nipper
Courtesy of MAZDA MOTORS CORP.
Pull the A-pillar trim in the direction of the arrow and remove the A-pillar trim while detaching guides.

Fig 3: Detaching A-Pillar Guides
Courtesy of MAZDA MOTORS CORP.
Move the hook in the direction of the arrow shown in the figure using a tape-wrapped flathead screwdriver and detach it from the front pillar inner panel.

Fig 4: Detaching Hook From Front Pillar Inner Panel Using Tape-Wrapped Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.

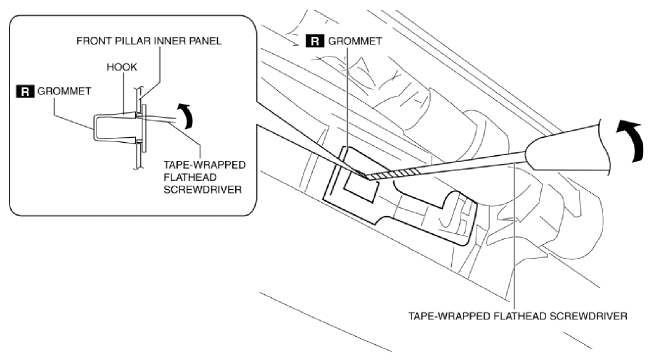

Move the hook in the direction of arrow (1) shown in the figure using a tape-wrapped flathead screwdriver and detach it from the front pillar inner panel.

Fig 5: Moving Hook Using Tape-Wrapped Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Remove the grommet in the direction of the arrow (2) shown in the figure.
When installing the A-pillar, install new clips B and grommet to the A-pillar trim in advance.
Install in the reverse order of removal.
