On-Vehicle Inspection
- Remove the aerodynamic under cover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)
- Prepare for the on-vehicle inspection. (See ON-VEHICLE INSPECTION PREPARATION .)

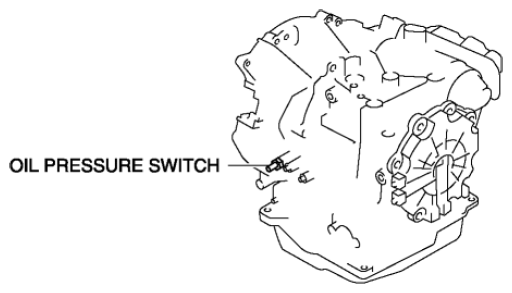

- Disconnect the oil pressure switch connector.
- Start the engine.
- Measure continuity between oil pressure switch terminal A and GND.
- If there is any malfunction, replace the oil pressure switch. (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION .)
OIL PRESSURE SWITCH CONTINUITYMeasurement conditions Continuity P position No R position No N position No D position Yes
