Aerodynamic Under Cover Removal/Installation

  1. Remove the screws A.

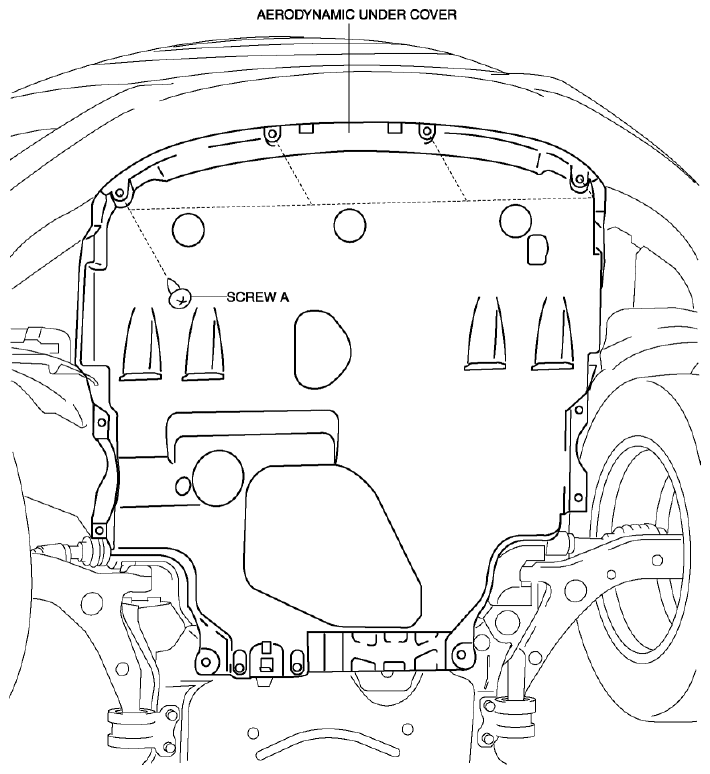

    Fig 1: Identifying Aerodynamic Under Cover And Screw A
    G08153172
  2. Remove the bolts B.

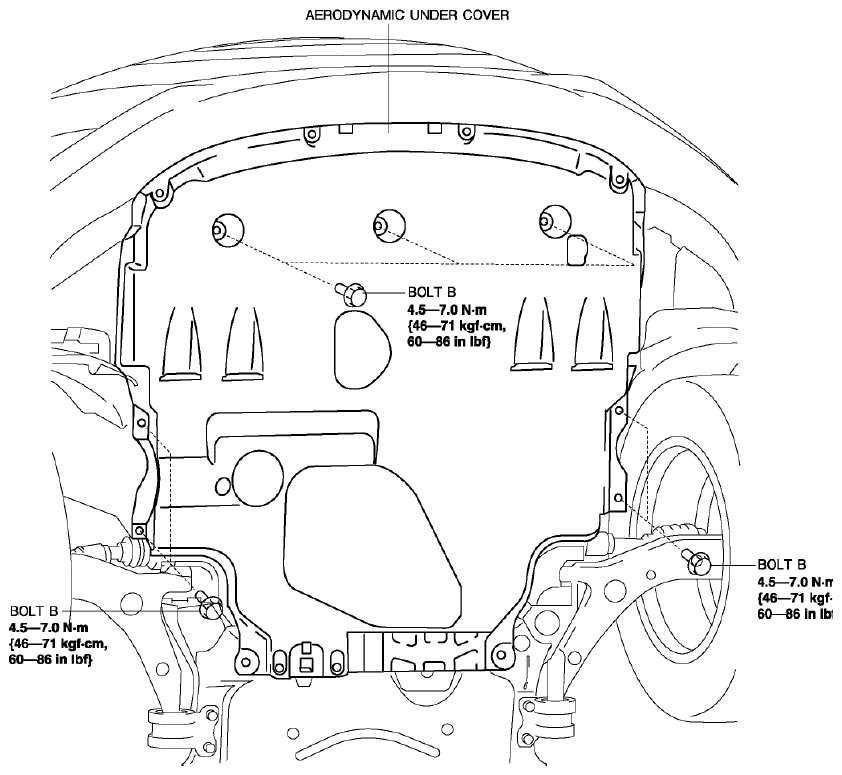

    Fig 2: Aerodynamic Under Cover And Bolts B With Torque Specifications
    G08153173
  3. Remove the fasteners C.
  4. Remove the aerodynamic under cover.

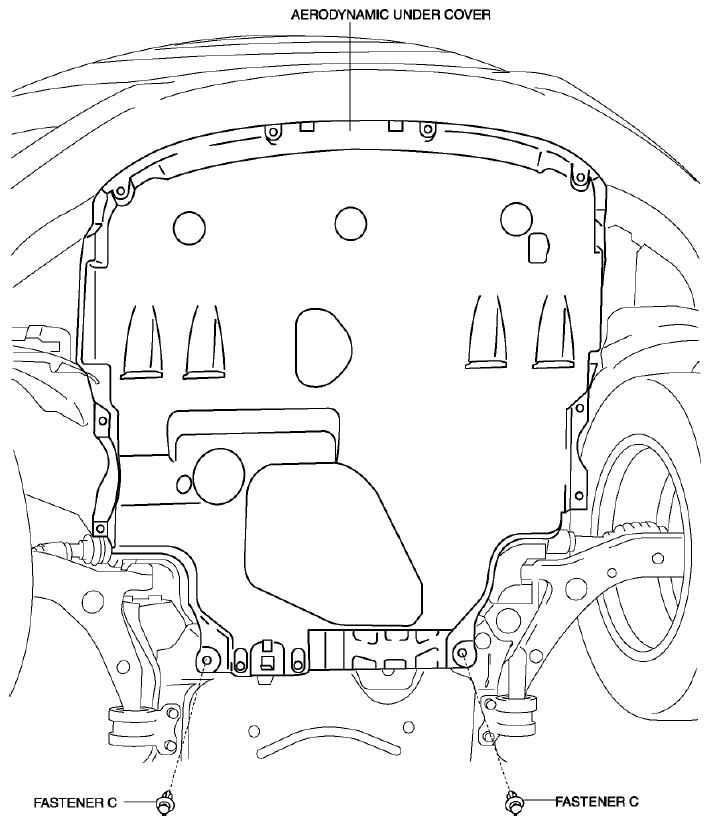

    Fig 3: Identifying Aerodynamic Under Cover And Fasteners C
    G08153174
  5. Install in the reverse order of removal.
