Pre-tensioner Seat Belt

  1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
  4. Remove the pre-tensioner seat belt and connect the SST (Adapter harness)  as shown in the figure. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)

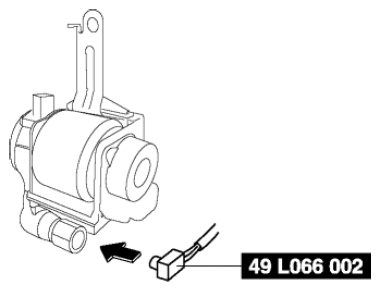

    Fig 1: Connecting SST (Adapter Harness)
    G08152462
  5. Install the pre-tensioner seat belt.
  6. Connect the SST (Deployment tool)  to the SST (Adapter harness)  .

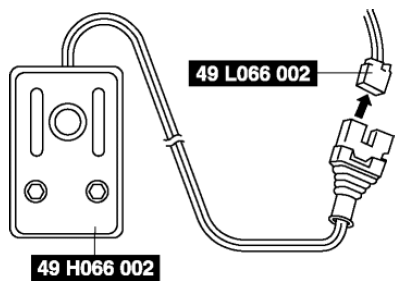

    Fig 2: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G08152463
  7. Connect the SST (Deployment tool)  to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  8. Verify that the red lamp on the SST (Deployment tool)  is illuminated.
  9. Verify that all persons are standing at least 6 m {20 ft}  away from the vehicle.
  10. Press the activation switch on the SST (Deployment tool)  to operate (deploy) the pre-tensioner seat belt.
    Fig 3: Identifying Activation Switch On SST (Deployment Tool)
    G08152464
    WARNING:
    • The pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the pre-tensioner seat belt for at least 15 min after deployment.
  11. Disconnect the SST (Deployment tool)  from the SST (Adapter harness)  .
