Clutch Pedal Removal/Installation: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable.
- Remove the battery component. (ex: battery, battery tray) (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
- Remove the starter interlock switch. (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION .)
- Remove the clutch pedal position switch. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION .)
- Remove the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
- Disconnect the steering shaft from steering gear. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
- Disconnect the clutch pipe and hose No.1 from clutch master cylinder, and plug it to avoid clutch fluid leakage. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)
- Disconnect the clutch reserve hose from clutch master cylinder, and plug it to avoid clutch fluid leakage. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)

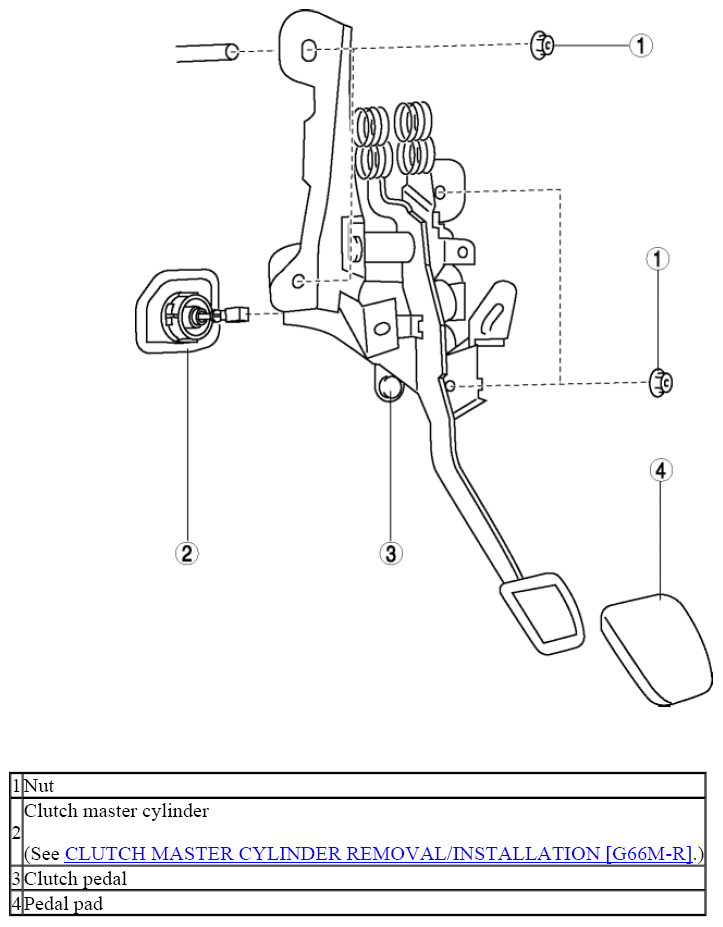

- Remove in the order indicated in the table.
