Clutch Pedal Position Switch Removal/Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery cable.
Disconnect the clutch pedal position switch connector.
Remove the clutch pedal position switch from the pedal bracket.

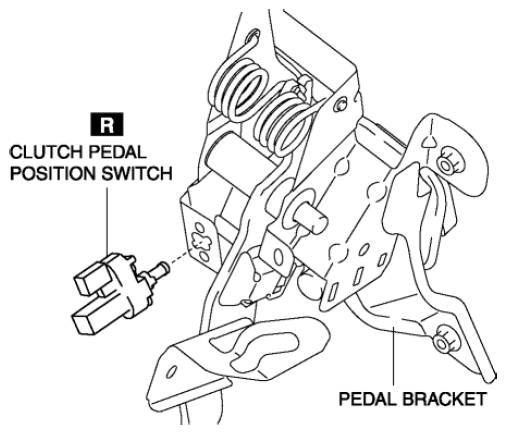

Fig 1: Identifying Clutch Pedal Position Switch And Pedal Bracket
Insert a new clutch pedal position switch into the pedal bracket hole until the switch stops.
Rotate the clutch pedal position switch 45° clockwise.

Fig 2: Rotating Clutch Pedal Position Switch 45° Clockwise
Verify that the clutch pedal position switch is locked securely.
Install in the reverse order of removal.
