Clutch Pipe And Hose Removal/Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Do not allow clutch fluid get on a painted surface. Clutch fluid contains properties which can dissolve the paint. If clutch fluid gets on a painted surface, wash it off with water immediately and wipe the area off completely.

Disconnect the negative battery cable.
Remove the battery component. (ex: battery, battery tray) (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)

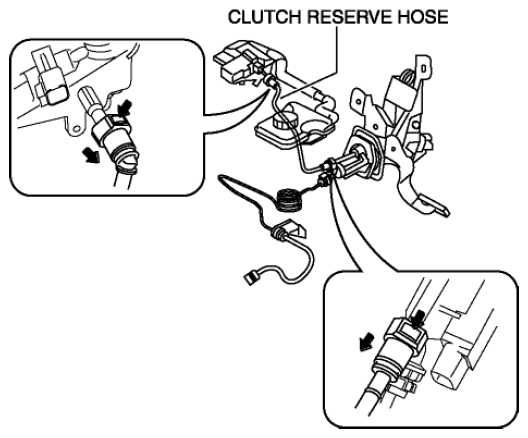

Remove the clutch reserve hose while pressing the point indicated by the arrow in the figure.

Fig 1: Removing Clutch Reserve Hose
Remove the clutch pipe and hose No.1 and No.2.
1. Lift the connector clip.

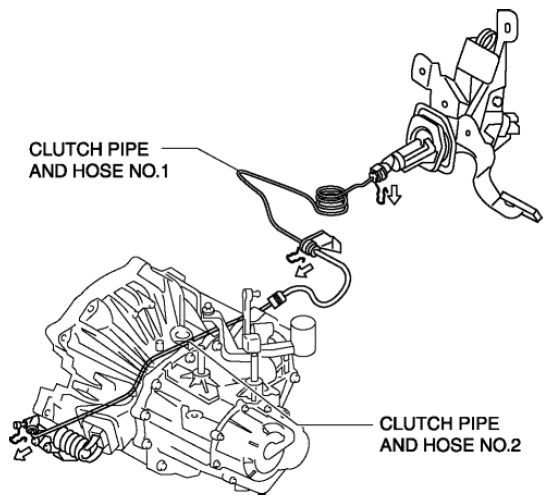

  Fig 2: Removing Clutch Pipe And Hose (No.1 And No.2)
2. Pull out the clutch pipe and hose No.1 and No.2 connector straight to detach it.
3. Remove the clutch pipe and hose No.1 and No.2.

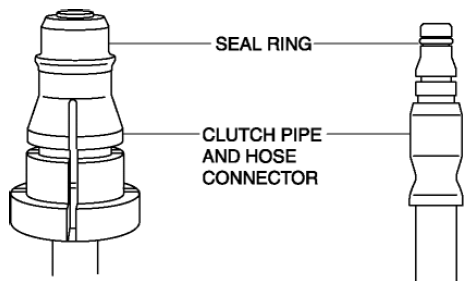

Verify that the seal ring is installed to the clutch pipe and hose connector.

Fig 3: Identifying Seal Ring, Clutch Pipe And Hose Connector
CAUTION:
- When removing the clutch pipe and hose, the seal ring for the clutch pipe and hose could remain on the receiving area of the connector. If the clutch pipe and hose is assembled under this condition, it could cause clutch fluid leakage from the connector.
Install the clutch pipe and hose No.1 and No.2.
1. Press in the connector clip.
2. Insert the clutch pipe and hose No.1 and No.2 connector straight.
  NOTE:
  - When the connector is engaged, a click sound is heard.
3. Install the clutch pipe and hose No.1 and No.2.
Insert the clutch reserve hose connector straight.
NOTE:
- When the connector is engaged, a click sound is heard.
Pull each engagement of the clutch reserve hose and clutch pipe and hose No.1 and 2, verify that they are engaged, and then press all of them again.
Install in the reverse order of removal.
Bleed the air from the clutch system. (See CLUTCH FLUID REPLACEMENT/AIR BLEEDING .)
