Clutch Pedal Removal/Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in the order indicated in the table.

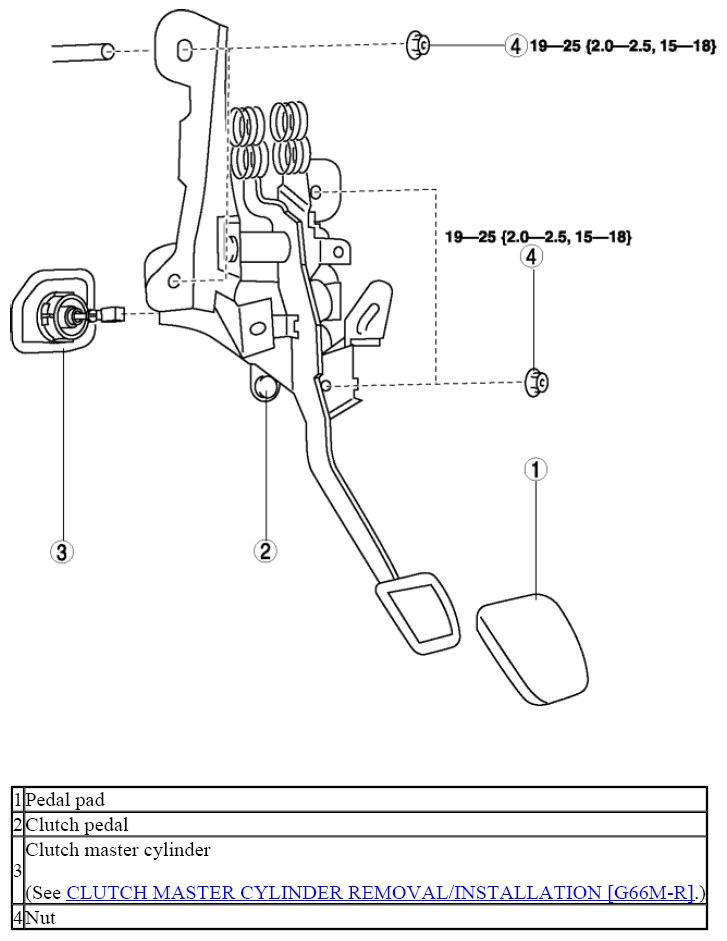

    Fig 1: Clutch Pedal Replacement Components With Torque Specifications
    G08152003
  2. Connect the clutch reserve hose to clutch master cylinder. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)
  3. Connect the clutch pipe and hose No.1 to clutch master cylinder. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)
  4. Connect the steering shaft. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  5. Install the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  6. Bleed the air from the clutch system. (See CLUTCH FLUID REPLACEMENT/AIR BLEEDING .)
  7. Inspect the clutch pedal. (See CLUTCH PEDAL INSPECTION .)
  8. Install a new clutch pedal position switch. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION .)
  9. Install a new starter interlock switch. (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION .)
  10. Install the battery component. (ex: battery, battery tray) (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  11. Connect the negative battery cable.
  12. Fully depress the clutch pedal, and verify that the engine starts.
