Floor Covering Removal/Installation

Disconnect the negative battery cable.
Remove the following parts:
1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
4. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
5. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
6. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
7. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
8. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
9. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
10. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
11. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
12. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
13. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
14. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
15. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
16. Second-row seat (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)
17. Front seat (See FRONT SEAT REMOVAL/INSTALLATION .)
Remove the fasteners.

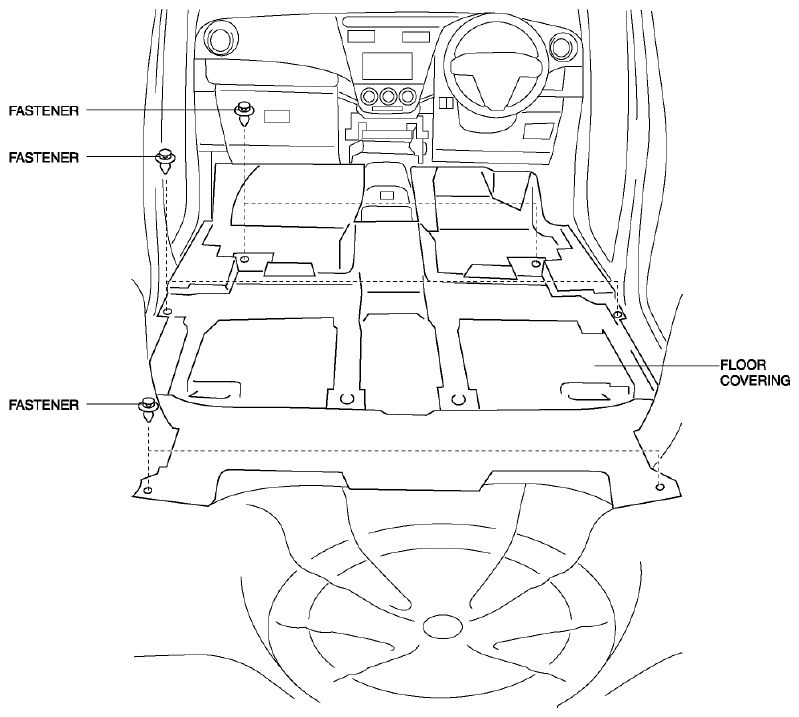

Fig 1: Identifying Floor Covering And Fasteners
Take the floor covering out from the opened door.
Install in the reverse order of removal.
