Front Door Checker Removal/Installation

  1. Fully close the front door glass.
  2. Disconnect the negative battery cable.
  3. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  4. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  5. Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
  6. Remove the bolt A.

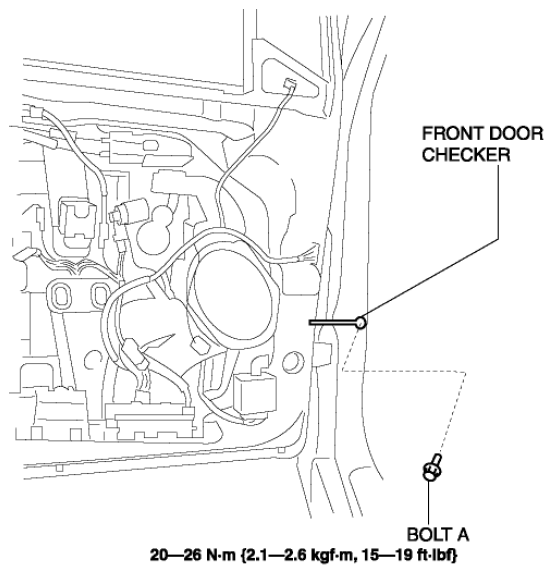

    Fig 1: Front Door Checker And Bolt A With Torque Specifications
    G08152762
  7. Remove the bolt B.

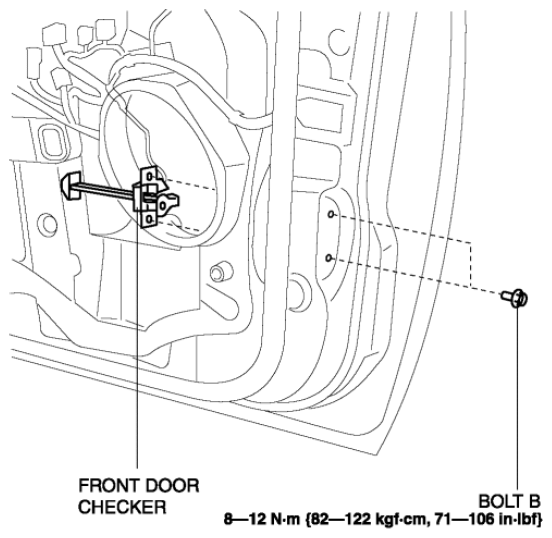

    Fig 2: Front Door Checker And Bolt B With Torque Specifications
    G08152763
  8. Pull out the front door checker from the front speaker installation hole.
  9. Install in the reverse order of removal.
