Rear Wiper Motor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the rear wiper motor connector.

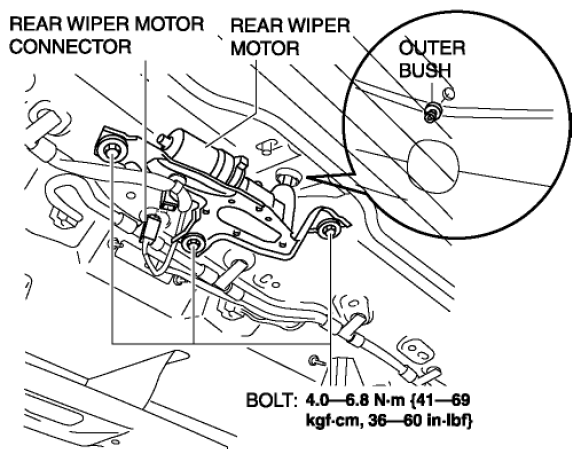

    Fig 1: Bolts, Rear Wiper Motor, Connector And Outer Bush With Torque Specifications
    G08153406
  4. Remove the bolts, then remove the rear wiper motor.
  5. Remove the outer bush.
  6. Install in the reverse order of removal.
