Liftgate Side Trim Removal/Installation
- Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)

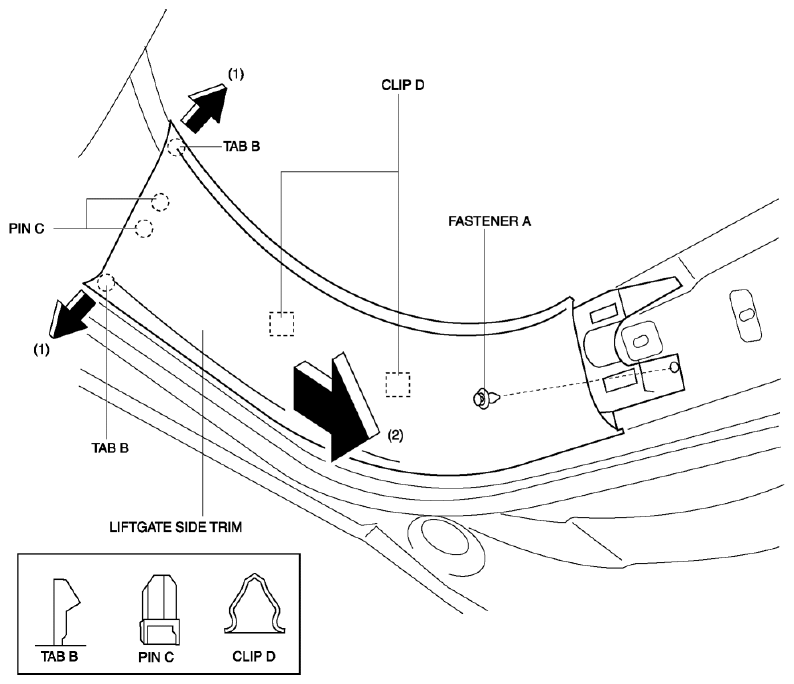

- Remove the fastener A.
- Detach tabs B while pulling the liftgate side trim in the direction of the arrow (1) shown in the figure, then detach pins C and clips D while pulling in the direction of the arrow (2).
- Remove the liftgate side trim.
- Install in the reverse order of removal.
