Liftgate Upper Trim Removal/Installation

  1. Detach tabs A while pulling the liftgate upper trim in the direction of the arrow (1) shown in the figure, then detach clips B, pin C, and clips D while pulling in the direction of the arrow (2).

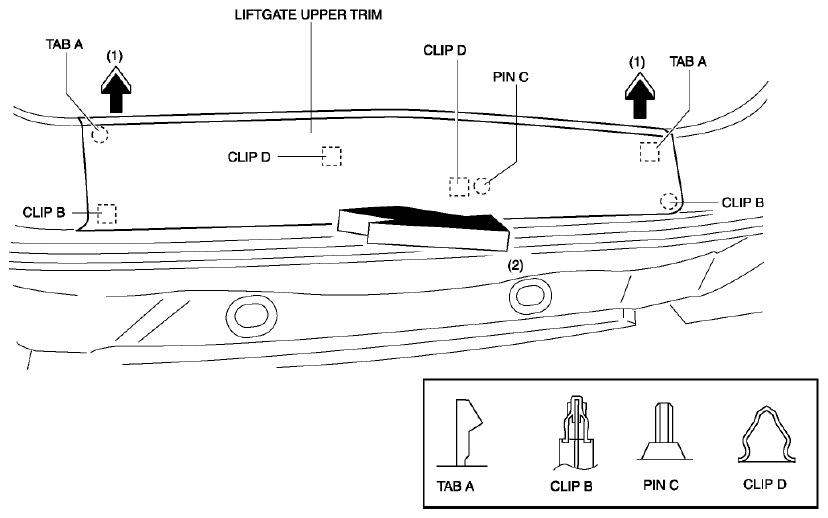

    Fig 1: Pulling Liftgate Upper Trim
    G08153273
  2. Remove the liftgate upper trim.
  3. Install in the reverse order of removal.
