Rear Washer Nozzle Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the rear washer hose.
  4. Press the tabs and remove the rear washer nozzle.

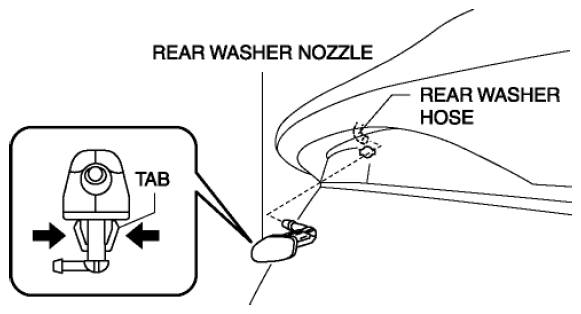

    Fig 1: Locating Rear Washer Nozzle Tabs
    G08153408
  5. Install in the reverse order of removal.
  6. Adjust the rear washer nozzle. (See REAR WASHER NOZZLE ADJUSTMENT .)
