Rear Washer Nozzle Adjustment

  1. Adjust the nozzle so that the washer fluid is sprayed within the area shown in the figure.

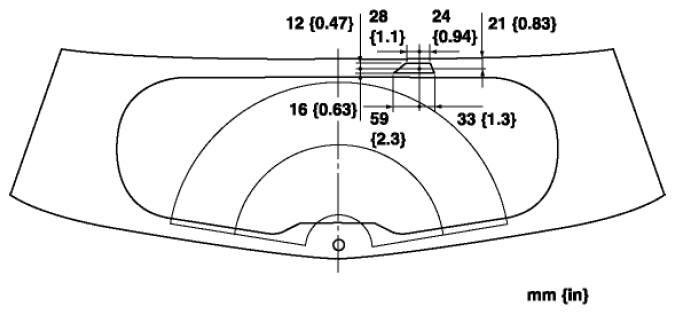

    Fig 1: Identifying Washer Fluid Sprayed Area
    G08153409
