Front Door Speaker Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the screws.

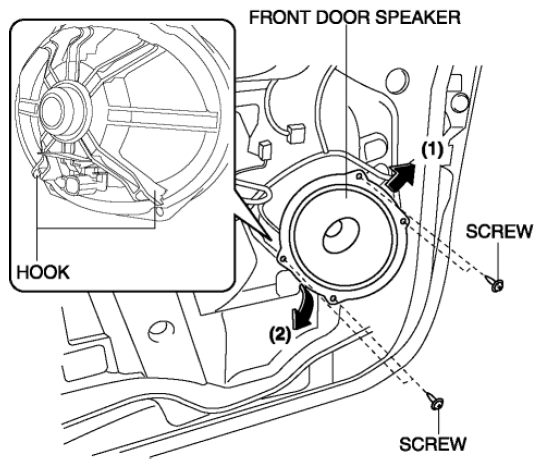

    Fig 1: Identifying Front Door Speaker And Screws
    G08153432
  5. Move the front door speaker in the direction of arrow (1) shown in the figure, and pull it out in the direction of arrow (2) shown in the figure while releasing the hooks.
  6. Disconnect the connector.

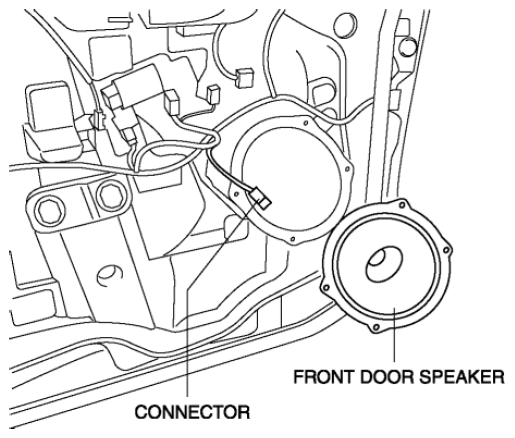

    Fig 2: Identifying Front Door Speaker And Connector
    G08153433
  7. Remove the front door speaker.
  8. Install in the reverse order of removal. (See FRONT DOOR SPEAKER INSTALLATION NOTE .)
