Antenna Feeder No.1 Inspection

Disconnect the negative battery cable.
Remove the following parts:
1. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
2. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
3. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
4. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
5. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
6. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
8. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
9. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
10. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
11. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
12. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
13. Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)
14. A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
Disconnect the antenna feeder No.2.

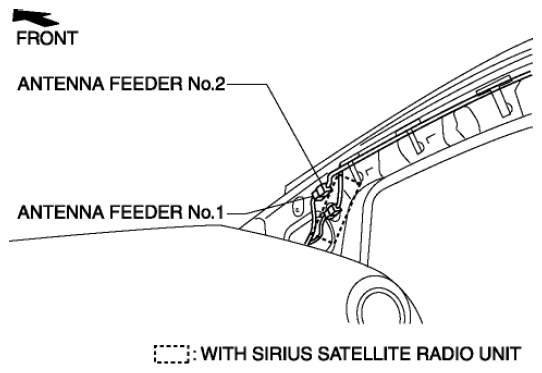

Fig 1: Identifying Antenna Feeder No.2 And Antenna Feeder No.1
Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.

Fig 2: Identifying Antenna Feeder No.1 Terminals
- If not as indicated in the table, replace antenna feeder No.1.

  Fig 3: Antenna Feeder No.1 Terminals Continuity Chart
