Climate Control Unit Removal/Installation [Full-Auto Air Conditioner]

CAUTION:

Affix protective tape to the position shown in the figure to prevent damage.

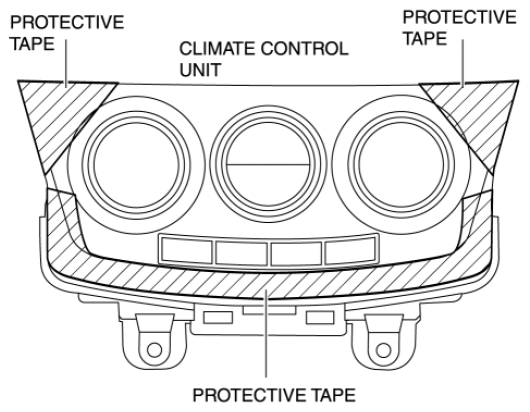

Fig 1: Applying Protective Tape On Climate Control Unit

Disconnect the negative battery cable.
Remove the following parts:
1. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
2. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
3. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
4. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
5. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
6. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
8. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
Release the left and right tabs and remove as shown in the figure.

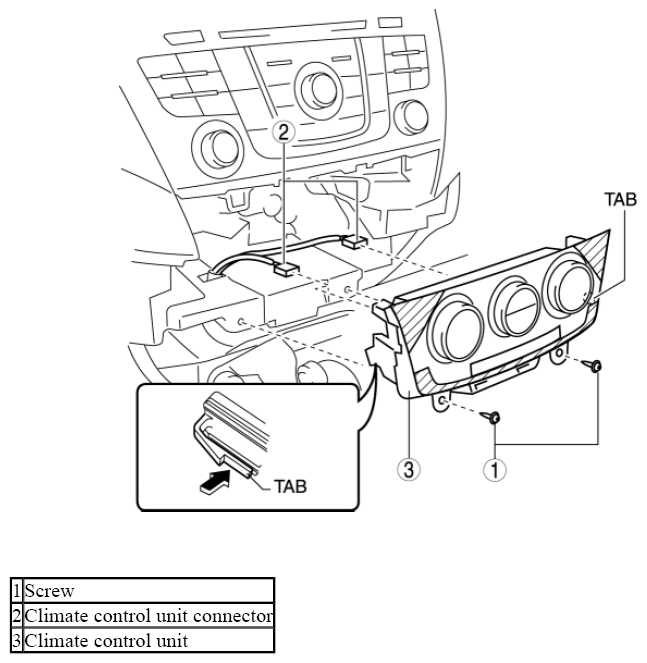

Fig 2: Climate Control Unit With Connector And Screw
Install in the reverse order of removal.
