Antenna Feeder No.2 Inspection

  1. Disconnect the negative battery cable.
  2. Remove the A-pillar trim. (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear header trim. (See REAR HEADER TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the antenna feeder No.1.

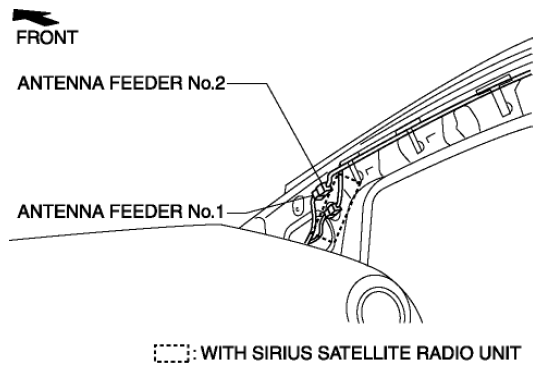

    Fig 1: Identifying Antenna Feeder No.1 And Antenna Feeder No.2
    G08153465
  5. Disconnect the roof antenna connector.

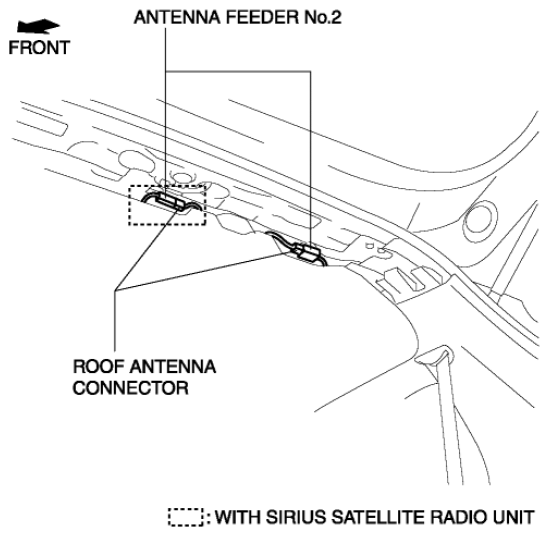

    Fig 2: Identifying Roof Antenna Connector And Antenna Feeder No.2
    G08153466
  6. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.

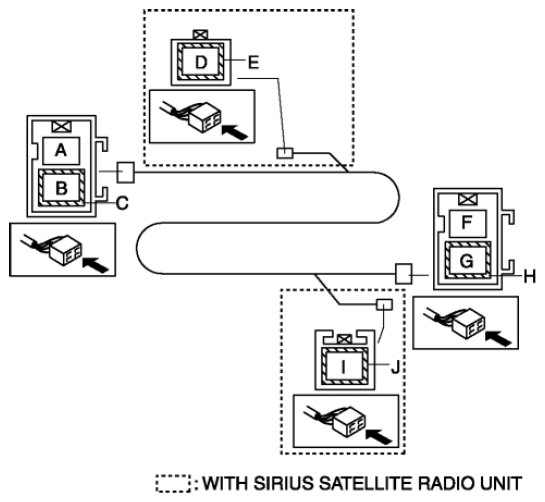

    Fig 3: Identifying Antenna Feeder No.2 Terminals
    G08153467
    • If not as indicated in the table, replace antenna feeder No.2.

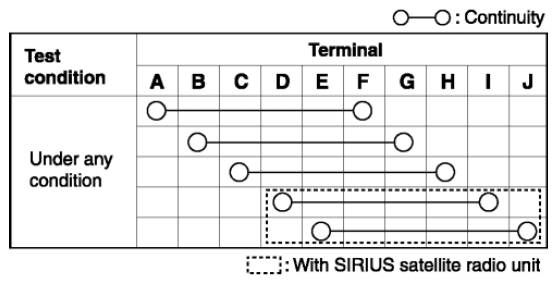

      Fig 4: Antenna Feeder No.2 Terminals Continuity Chart
      G08153468
