Rear Door Hinge: Service and Repair

REAR DOOR HINGE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear door Service and Repair

b. Front scuff plate Front Scuff Plate Removal/Installation

c. Rear scuff plate Rear Scuff Plate Removal/Installation

d. B-pillar lower trim B-Pillar Lower Trim Removal/Installation

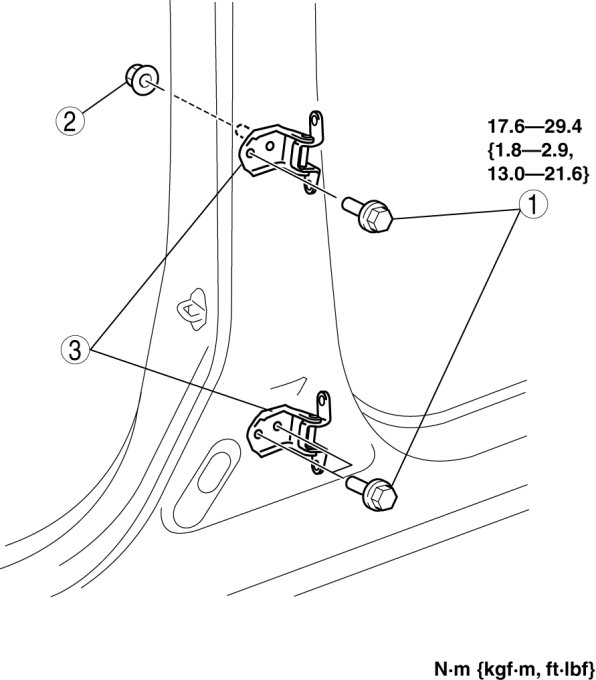

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

5. Adjust the front door. Adjustments
