Coupler Component Removal/Installation

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until then are cool.
  • Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eyeglasses whenever using compressed air.
CAUTION:
  • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  • Do not damage the terminals.
  1. Disconnect the negative battery cable.
  2. Remove the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Remove the air cleaner bracket. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
  5. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  6. Remove the TCM. (See TCM REMOVAL/INSTALLATION .)
  7. Disconnect the oil hose from the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  8. Remove the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  9. Remove the control valve body cover. (See CONTROL VALVE BODY COVER REPLACEMENT .)
    NOTE:
    • Disconnect the solenoid connector according to the following procedure:
      • Insert a precision flathead screwdriver from the backside into the connector as shown in the figure.

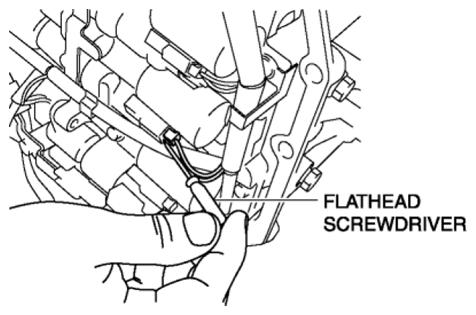

        Fig 1: Inserting Flathead Screwdriver From Backside Into Connector
        G08143031
    CAUTION:
    • Do not damage the solenoid valves and connectors with the flathead screwdriver.
    • Pry the flathead screwdriver in the direction of the arrow and disconnect the connector.

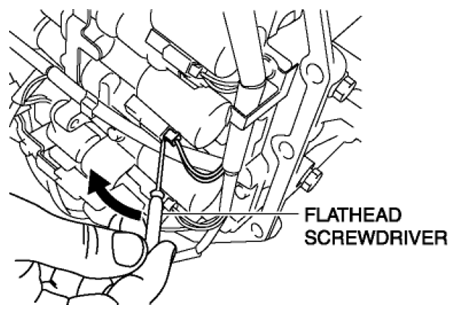

      Fig 2: Disconnecting Connector Using Flathead Screwdriver
      G08143032
    CAUTION:
    • When disconnecting connectors, grasp the connectors, not the wiring harnesses. Otherwise, the wiring harnesses may be pulled out of the connector causing poor contact.
  10. Disconnect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.

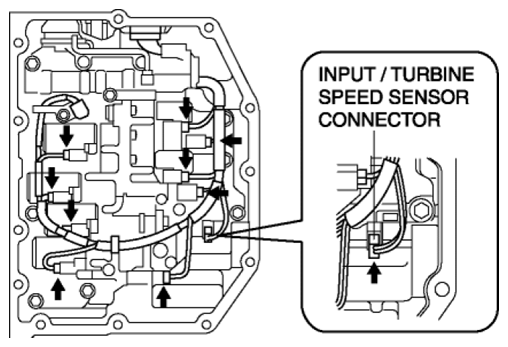

    Fig 3: Locating Solenoid Connectors, VSS Connector And Input/Turbine Speed Sensor Connector
    G08143033
  11. Disconnect the coupler component from the clamp.

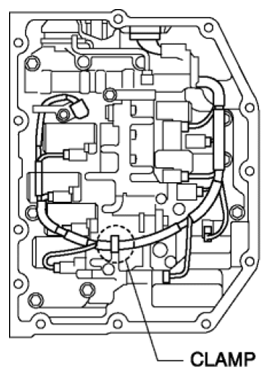

    Fig 4: Identifying Coupler Component Clamp
    G08143034
  12. Remove the lock plate, and pull out the TFT sensor from the control valve body.

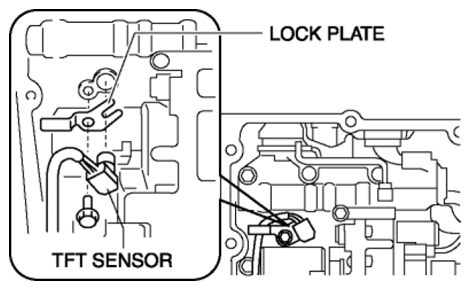

    Fig 5: Identifying Lock Plate And TFT Sensor
    G08143035
  13. Remove the coupler component lock plate.
    Fig 6: Identifying Coupler Component And Coupler Component Lock Plate
    G08143036
  14. Remove the coupler component from the transaxle case.

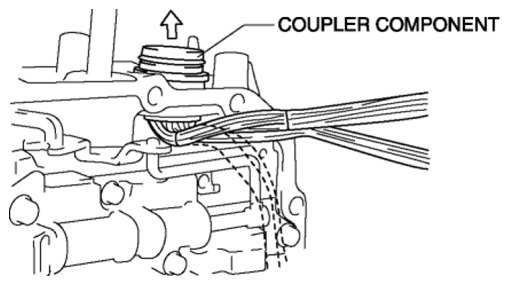

    Fig 7: Transaxle Case Coupler Component
    G08143037
    CAUTION:
    • Do not damage the wiring harness.
    • Do not pull hard on the wiring harness.
  15. Remove the O-ring and the gasket from the coupler component.

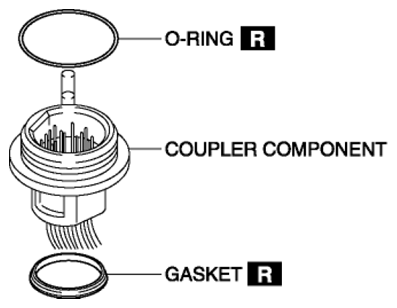

    Fig 8: Identifying O-Ring, Gasket And Coupler Component
    G08143038
  16. Apply ATF to a new gasket.
  17. Install the new gasket to the coupler component.
    Fig 9: Identifying O-Ring, Gasket And Coupler Component
    G08143039
  18. Install a new O-ring to the coupler component.
    CAUTION:
    • Do not apply ATF to the O-ring.
  19. Install the coupler component to the transaxle case.

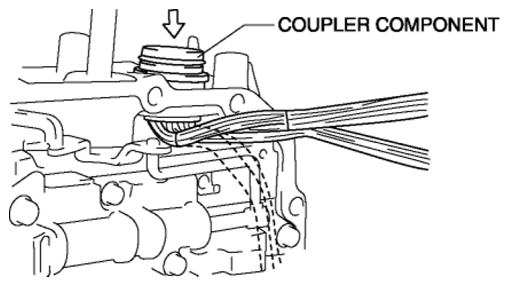

    Fig 10: Installing Coupler Component To Transaxle Case
    G08143040
    CAUTION:
    • Do not apply too much force to the coupler component.
    • Do not damage the coupler component.
  20. Install a new coupler component lock plate.

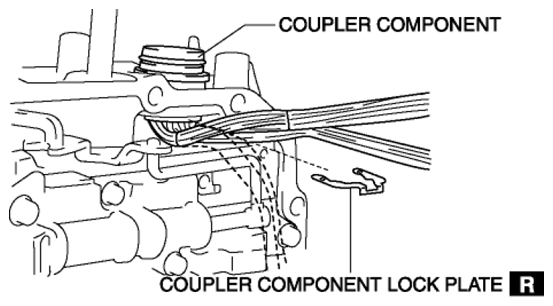

    Fig 11: Identifying Coupler Component And Lock Plate
    G08143041
    NOTE:
    • Assemble the coupler component to the transaxle case and engage it with the coupler component lock plate.
  21. Install the TFT sensor with the lock plate and a bolt to the control valve body component as shown in the figure.
    Fig 12: Identifying TFT Sensor And Lock Plate
    G08143042

    Tightening torque

    • 6.0-8.0 N.m {62-81 kgf.cm, 54-70 in.lbf}
  22. Connect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.
    Fig 13: Locating Solenoid Connectors, VSS Connector And Input/Turbine Speed Sensor Connector
    G08143043
  23. Connect the coupler component to the clamps.
    Fig 14: Identifying Coupler Component Clamps
    G08143044
  24. Install the new control valve body cover. (See CONTROL VALVE BODY COVER REPLACEMENT .)
  25. Install the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  26. Connect the oil hose to the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  27. Install the TCM. (See TCM REMOVAL/INSTALLATION .)
  28. Install the air cleaner bracket. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  29. Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL ADJUSTMENT .)
  30. Install the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  31. Connect the negative battery cable.
  32. Perform the "Neutral Position Learning". (See TCM NEUTRAL POSITION LEARNING .)
  33. Adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL ADJUSTMENT .)
  34. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
  35. Perform the "Road Test". (See ROAD TEST .)
