Control Valve Body Cover Replacement

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool.
  • Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eyeglasses whenever using compressed air.
  1. Disconnect the negative battery cable.
  2. Remove the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Remove the air cleaner bracket. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
  5. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  6. Disconnect the oil hose from the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  7. Remove the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  8. Remove the control valve body cover installation bolt.
    Fig 1: Locating Control Valve Body Cover Installation Bolt
    G08143188
  9. Using a plastic hammer, tap the control valve body cover to remove it.

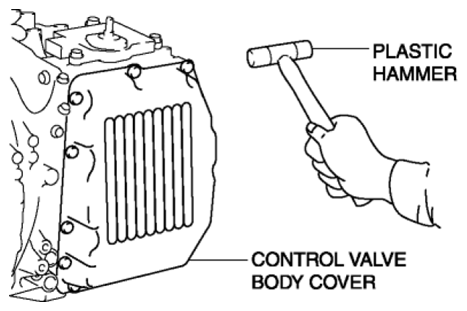

    Fig 2: Tapping Control Valve Body Cover Using Plastic Hammer
    G08143189
    CAUTION:
    • Do not damage the fitting surface of the transaxle case and the control valve body cover.
    • Do not deform the control valve body cover.
  10. Clean sealant and oil off the contact surface of the transaxle case with the control valve body cover and the bolt holes.

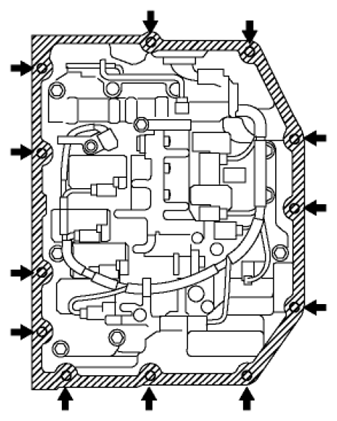

    Fig 3: Identifying Sealant And Oil Application Area On Contact Surface Of Transaxle Case
    G08143190
    NOTE:
    • Completely remove sealant and oil with white gasoline or similar.
  11. Clean oil off the contact surface of the new control valve body cover with the transaxle case.
  12. Apply sealant to the new control valve body cover as shown in the figure.
    Fig 4: Identifying Sealant Application Area On Control Valve Body Cover
    G08143191
  13. Install the new control valve body cover with new seal bolts before the applied sealant starts to harden.

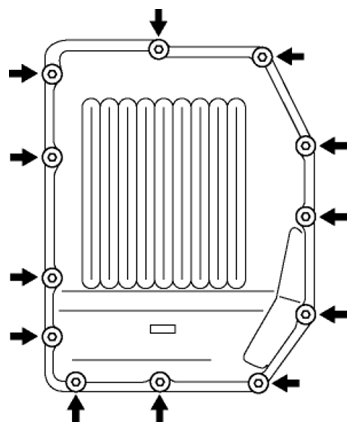

    Fig 5: Locating Control Valve Body Cover With Seal Bolts
    G08143192
    CAUTION:
    • Be careful that the coupler component will not become caught between the control valve body cover and transaxle case.

    Tightening torque

    • 10-15 N.m {102-152 kgf.cm, 89-132 in.lbf}
  14. Install the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  15. Connect the oil hose to the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  16. Install the air cleaner bracket. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  17. Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL ADJUSTMENT .)
  18. Install the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  19. Connect the negative battery cable.
  20. Adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL ADJUSTMENT .)
  21. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
