Control Valve Body Removal/Installation

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool.
  • Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eyeglasses whenever using compressed air.
CAUTION:
  • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  1. Disconnect the negative battery cable.
  2. Remove the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Remove the air cleaner bracket. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
  5. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  6. Disconnect the oil hose from the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  7. Remove the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  8. Remove the control valve body cover. (See CONTROL VALVE BODY COVER REPLACEMENT .)
    NOTE:
    • Disconnect the solenoid connector according to the following procedure:
      • Insert a precision flathead screwdriver from the backside into the connector as shown in the figure.

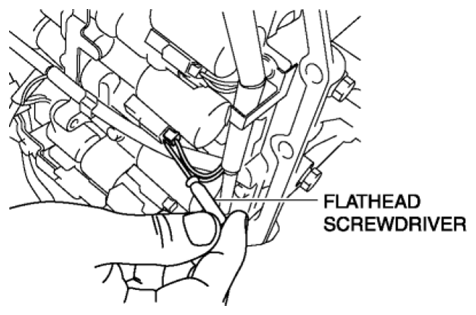

    Fig 1: Inserting Flathead Screwdriver From Backside Into Connector
    G08143193
    CAUTION:
    • Do not damage the solenoid valves and connectors with the flathead screwdriver.

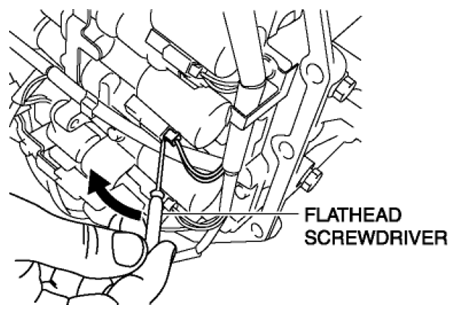

    • Pry the flathead screwdriver in the direction of the arrow and disconnect the connector.
      Fig 2: Disconnecting Connector Using Flathead Screwdriver
      G08143194
    CAUTION:
    • When disconnecting connectors, grasp the connectors, not the wiring harnesses. Otherwise, the wiring harnesses may be pulled out of the connector causing poor contact.
  9. Disconnect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.
    Fig 3: Locating Solenoid Connectors, VSS Connector And Input/Turbine Speed Sensor Connector
    G08143195
  10. Disconnect the coupler component from the clamp.

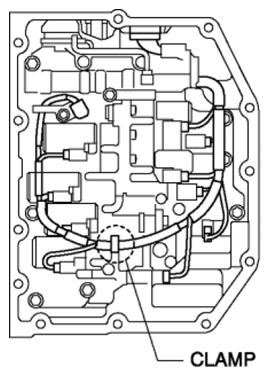

    Fig 4: Identifying Coupler Component Clamp
    G08143196
  11. Remove the lock plate, and pull out the TFT sensor from the control valve body.
    Fig 5: Identifying Lock Plate And TFT Sensor
    G08143197
  12. Remove the VSS connector from the solenoid clamp.
    Fig 6: Identifying VSS Connector And Solenoid Clamp
    G08143198
  13. Remove the suction cover and the gasket.
    Fig 7: Identifying Suction Cover And Gasket With Bolts
    G08143199

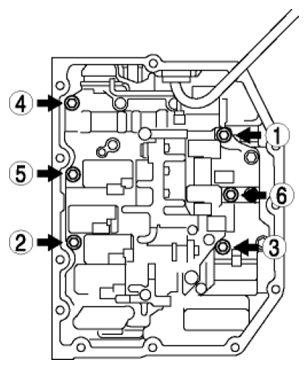

  14. Remove the control valve body installation bolts in the order shown in the figure.
    Fig 8: Locating Control Valve Body Installation Bolts Loosening Sequence
    G08143200

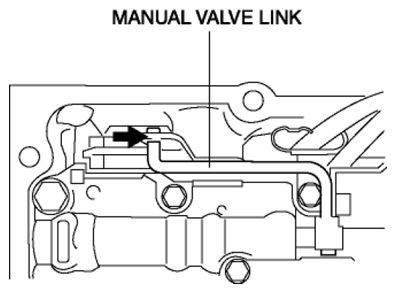

  15. Disconnect the manual valve link and remove the control valve body component.
    Fig 9: Identifying Manual Valve Link
    G08143201
    CAUTION:
    • Do not drop the control valve body component.

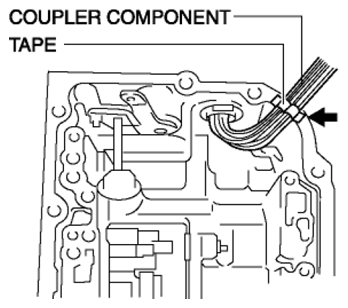

  16. Fix the coupler component with tape to the transaxle case as shown in the figure.
    Fig 10: Locating Coupler Component And Tape
    G08143202
    NOTE:
    • Be sure to secure the coupler component with tape so that it will not interfere with the control valve body component.
  17. Fix the VSS wiring harness with tape to the transaxle case as shown in the figure.

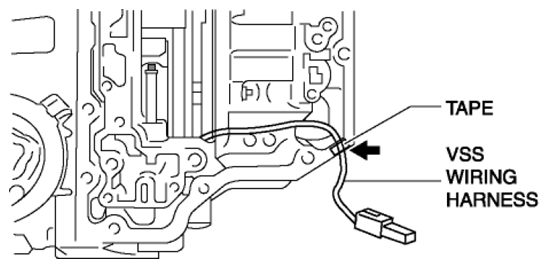

    Fig 11: Identifying Tape And VSS Wiring Harness
    G08143203
    NOTE:
    • Be sure to secure the VSS with tape so that they will not interfere with the control valve body component.
  18. Connect the manual valve link and install the control valve body component.

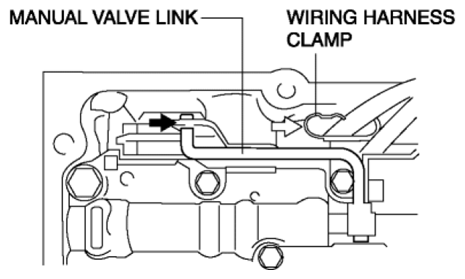

    Fig 12: Identifying Manual Valve Link And Wiring Harness Clamp
    G08143204
    CAUTION:
    • When installing the control valve body component, secure the coupler component to the wiring harness clamp.
    • Do not pinch the coupler component between the transaxle case and the control valve body component.

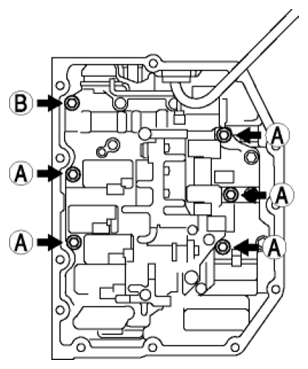

  19. Temporarily install the control valve body component with the bolts.
    Fig 13: Locating Control Valve Body Component Bolts
    G08143205
    NOTE:
    • Aligning the bolt holes, temporarily tighten the bolt by hand.

    Bolt length (measured from below the head)

    • A: 21 mm {0.83 in}
    • B: 31 mm {1.2 in}
  20. Temporarily install the suction cover and a new gasket with the bolts.

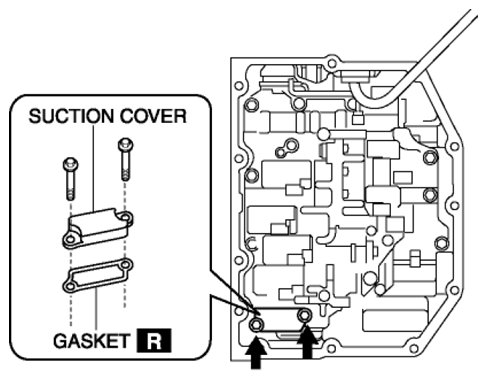

    Fig 14: Identifying Suction Cover And Gasket With Bolts
    G08143206
    NOTE:
    • Aligning the bolt holes, temporarily tighten the bolt by hand.
  21. Tighten the bolts in the order shown in the figure.

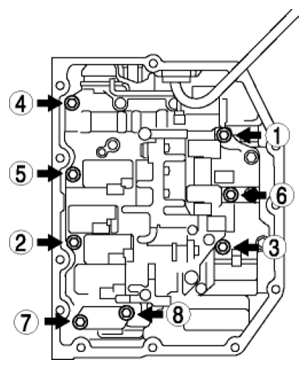

    Fig 15: Locating Control Valve Body Component Bolts
    G08143207

    Tightening torque

    • 8-12 N.m {82-122 kgf.cm, 71-106 in.lbf}
  22. Install the connector of the VSS to the solenoid clamp.

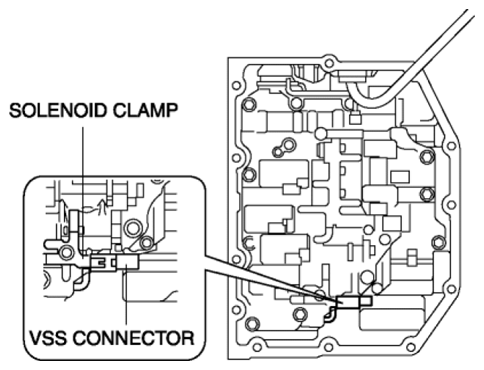

    Fig 16: Identifying VSS Connector And Solenoid Clamp
    G08143208
  23. Install the TFT sensor with the lock plate and a bolt to the control valve body component as shown in the figure.

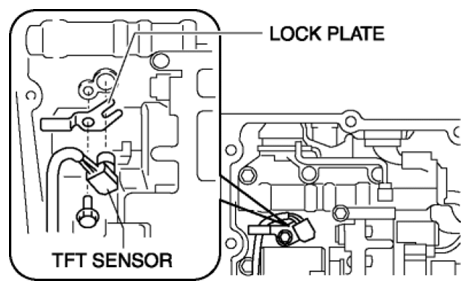

    Fig 17: Identifying TFT Sensor And Lock Plate
    G08143209

    Tightening torque

    • 6.0-8.0 N.m {62-81 kgf.cm, 54-70 in.lbf}

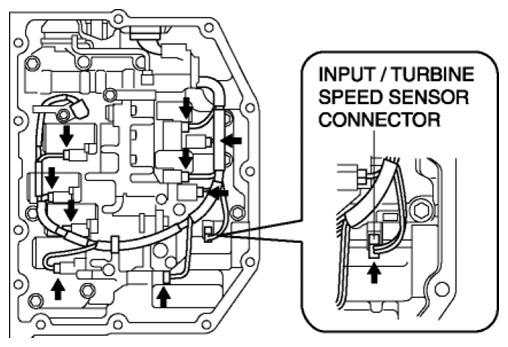

  24. Connect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.
    Fig 18: Locating Solenoid Connectors, VSS Connector And Input/Turbine Speed Sensor Connector
    G08143210
  25. Connect the coupler component to the clamps.
    Fig 19: Identifying Coupler Component Clamps
    G08143211
  26. Install the new control valve body cover. (See CONTROL VALVE BODY COVER REPLACEMENT .)
  27. Install the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  28. Connect the oil hose to the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  29. Install the air cleaner bracket. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  30. Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL ADJUSTMENT .)
  31. Install the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  32. Connect the negative battery cable.
  33. Adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL ADJUSTMENT .)
  34. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
  35. Perform the "Road Test". (See ROAD TEST .)
