Rear Door Pad Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. To access the glass installation bolt, position the rear door glass so that the distance from the top of the rear door glass to the upper part of the rear beltline molding is approx. 144 mm {5.67 in}  .
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Rear door trim. See REAR DOOR TRIM REMOVAL/INSTALLATION .
    2. Rear door speaker. See REAR DOOR SPEAKER REMOVAL/INSTALLATION .
      Fig 1: Identifying Distance From Top Of Rear Door Glass To Upper Part Of Rear Beltline
      G06205706Courtesy of MAZDA MOTORS CORP.
    3. Rear door glass. See REAR DOOR GLASS REMOVAL/INSTALLATION .
    4. Rear door module panel. See REAR DOOR MODULE PANEL REMOVAL/INSTALLATION .
  4. Remove the fasteners A.
  5. Remove the rear door pad No. 1.
    Fig 2: Identifying Rear Door Pad No. 1 And Fastener A
    G06205707Courtesy of MAZDA MOTORS CORP.
  6. Remove the fasteners B.
  7. Remove the rear door pad No. 2.
  8. Install in the reverse order of removal.

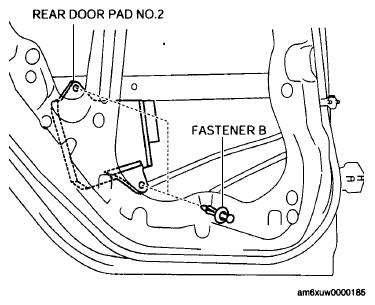

Fig 3: Identifying Rear Door Pad No. 2 And Fastener B
G06205708Courtesy of MAZDA MOTORS CORP.
