Rear Door Checker Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully close the rear door glass.
  2. Disconnect the negative battery cable.
  3. Remove the sail inner garnish. See INNER GARNISH REMOVAL/INSTALLATION .
  4. Remove the rear door trim. See REAR DOOR TRIM REMOVAL/INSTALLATION .
  5. Remove the rear door speaker. See REAR DOOR SPEAKER REMOVAL/INSTALLATION .
  6. Remove the bolt.

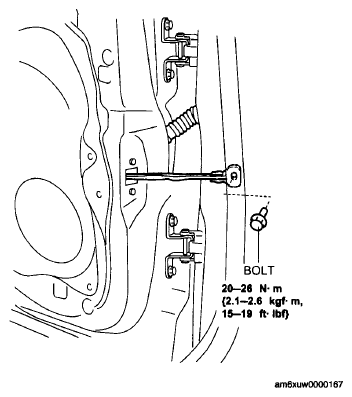

    Fig 1: Rear Door Checker With Mounting Bolts Torque Specifications
    G06205698Courtesy of MAZDA MOTORS CORP.
  7. Remove the nuts.
  8. Pull out the rear door checker from the rear speaker installation hole.
  9. Install in the reverse order of removal.
Fig 2: Rear Door Checker With Mounting Nuts Torque Specifications
G06205699Courtesy of MAZDA MOTORS CORP.
