Inner Garnish Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.

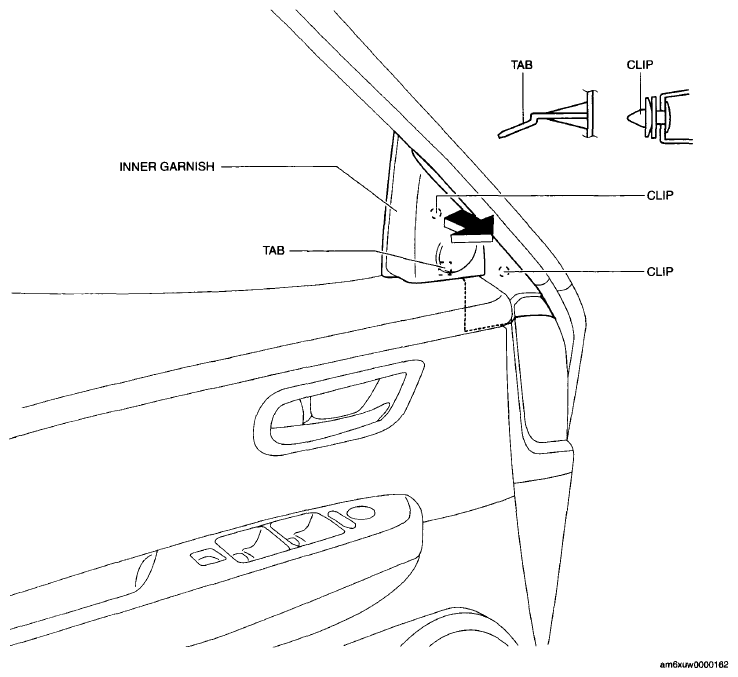

- Pull the inner garnish in the direction of the arrow shown in the figure and remove it while detaching clips.
- Disconnect the front tweeter connector. (Vehicles with tweeter)
- Install in the reverse order of removal.
