Selector Cable Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the aerodynamic under cover NO 2. (for 5ATX). See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .
  3. Remove the rear console. See REAR CONSOLE REMOVAL/INSTALLATION .
  4. Remove the dashboard. See DASHBOARD REMOVAL/INSTALLATION .
  5. Remove the A/C unit. See A/C UNIT REMOVAL/INSTALLATION .
  6. Remove the SAS control module. See SAS CONTROL MODULE REMOVAL/INSTALLATION .
  7. Remove in the order indicated in the table.
  8. Install in the reverse order of removal.
  9. Adjust the selector cable after having installed. See SELECTOR CABLE ADJUSTMENT .

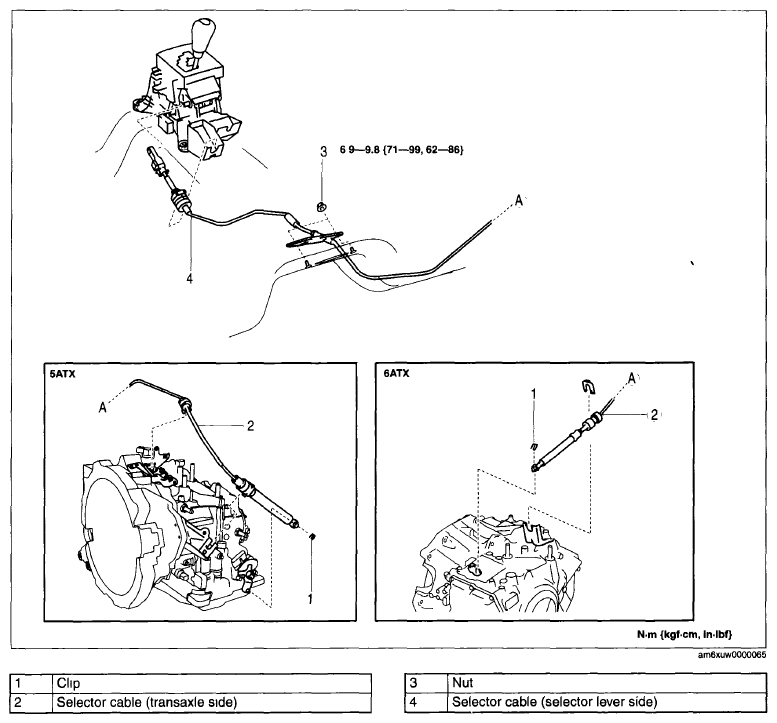

Fig 1: Selector Cable Replacement Components With Torque Specifications
G06205952Courtesy of MAZDA MOTORS CORP.
