Windshield Washer Hose Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front mudguard (RH) See FRONT MUDGUARD REMOVAL/INSTALLATION .
  2. Disconnect the windshield washer hose A from the windshield washer motor.
  3. Remove the windshield washer hose A from the clip A, B.
  4. Disconnect the windshield washer hose from the joint pipe A.
  5. Remove the windshield washer hose A
  6. Remove the joint pipe A.
  7. Remove the windshield wiper arm and blade. See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .
  8. Remove the cowl grille. See COWL GRILLE REMOVAL/INSTALLATION .
  9. Disconnect the windshield washer hose B from the check valve.
  10. Remove the windshield washer hose B.
  11. Remove the check valve.
  12. Disconnect windshield washer hose C from the joint pipe B.
  13. Remove the windshield washer hose C.
  14. Remove the joint pipe B.
  15. Disconnect the windshield washer hose E from the windshield washer nozzle (RH).
  16. Remove the windshield washer hose D.
  17. Remove the windshield washer hose D from the hook.

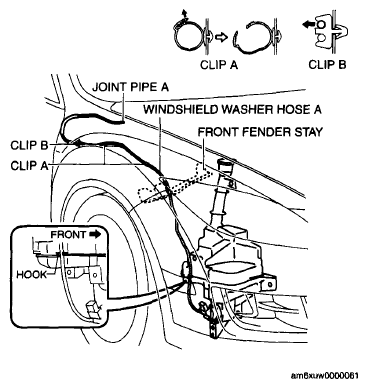

    Fig 1: Identifying Windshield Washer Hose And Joint Pipe
    G06199544Courtesy of MAZDA MOTORS CORP.
  18. Disconnect the windshield washer hose E from the joint pipe C.
  19. Remove the windshield washer hose E.
  20. Remove the joint pipe C.
  21. Remove the windshield washer hose F from the hook.
  22. Disconnect the windshield washer hose F from the windshield washer nozzle (LH).
  23. Remove the windshield washer hose F

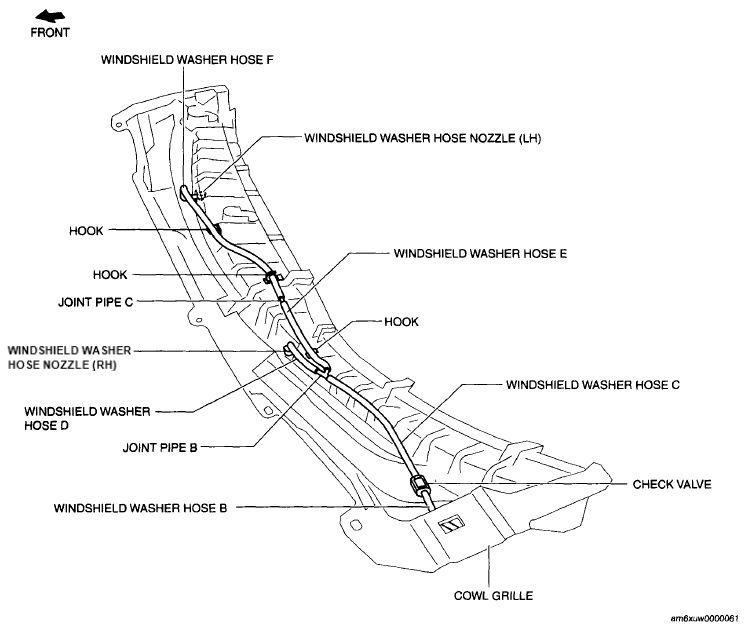

    Fig 2: Identifying Windshield Washer Hose Part Location
    G06199545Courtesy of MAZDA MOTORS CORP.
  24. Install in the reverse order of removal.
