Pressure Hose Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the connecting bolt from the power steering oil pump.
  2. Remove the aerodynamic under cover NO. 2. See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .
  3. Set the front mudguard (RH) out of the way. See FRONT MUDGUARD REMOVAL/INSTALLATION .
  4. Remove the splash shield (RH).
    Fig 1: Identifying Connecting Bolt And Power Steering Oil Pump
    G06200286Courtesy of MAZDA MOTORS CORP.
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

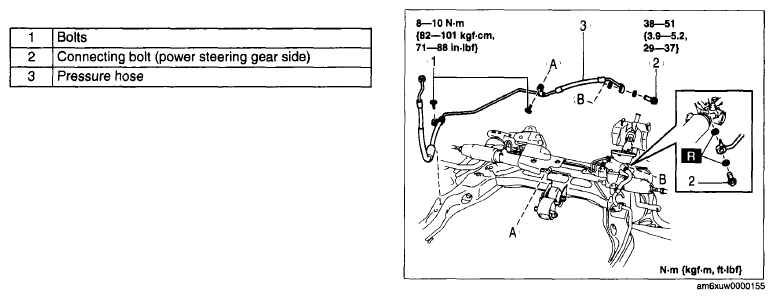

    Fig 2: Pressure Hose Replacement Components With Torque Specifications
    G06200287Courtesy of MAZDA MOTORS CORP.
