Cooling Pipe Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the aerodynamic under cover NO. 2. See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .
  2. Set the front mudguard (LH) out of the way. See FRONT MUDGUARD REMOVAL/INSTALLATION .
  3. Remove the splash shield (LH).
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

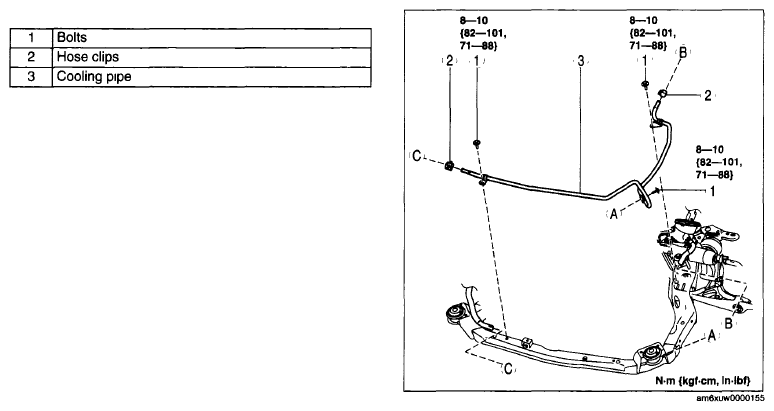

    Fig 1: Cooling Pipe Replacement Components With Torque Specifications
    G06200289Courtesy of MAZDA MOTORS CORP.
