Joint Shaft Removal/Installation: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor wiring harness will not be pulled by mistake while servicing the vehicle.
  1. Set the front mudguard out of the way. See FRONT MUDGUARD REMOVAL/INSTALLATION .
  2. Remove the splash shield.
  3. Drain the transaxle oil or ATF. See TRANSAXLE OIL REPLACEMENT [G66M-R] . See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FS5A-EL] . See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6A-EL] .
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
  6. Add the transaxle oil or ATF. See TRANSAXLE OIL REPLACEMENT [G66M-R] . See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FS5A-EL] . See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6A-EL] .

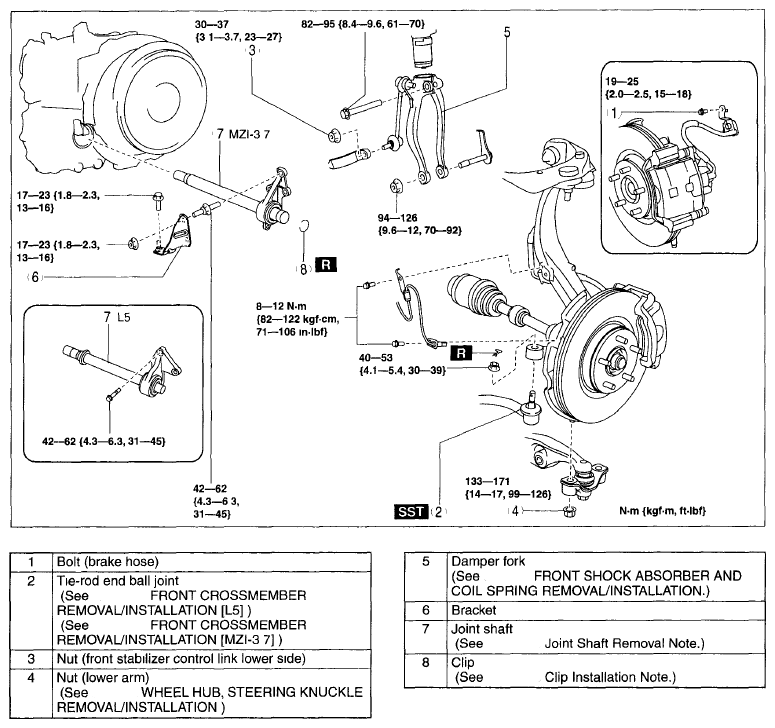

    Fig 1: Joint Shaft Removal/Installation Order With Torque Specifications
    G06205490Courtesy of MAZDA MOTORS CORP.
