Front Sash Molding Removal

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inner garnish. See. INNER GARNISH REMOVAL/INSTALLATION )
  2. Remove the front door trim. See. FRONT DOOR TRIM REMOVAL/INSTALLATION )
  3. Remove the power outer mirror. See. POWER OUTER MIRROR REMOVAL/INSTALLATION )
  4. Press tab A in the direction of the arrow and remove it

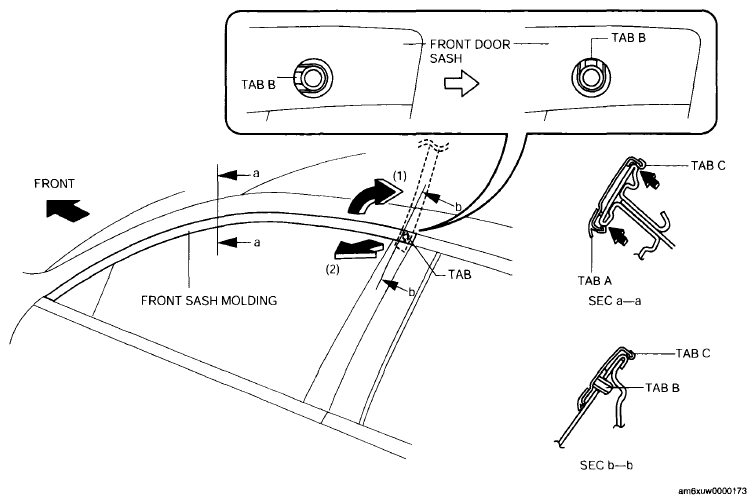

    Fig 1: Identifying Tab A And C
    G06199443Courtesy of MAZDA MOTORS CORP.
  5. Press tab C in the direction of the arrow and remove it.
  6. Rotate the front sash molding 90°.
