Front Door Trim Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the inner garnish. See INNER GARNISH REMOVAL/INSTALLATION )
Pull the cover of inner handle and remove it while detaching tabs.

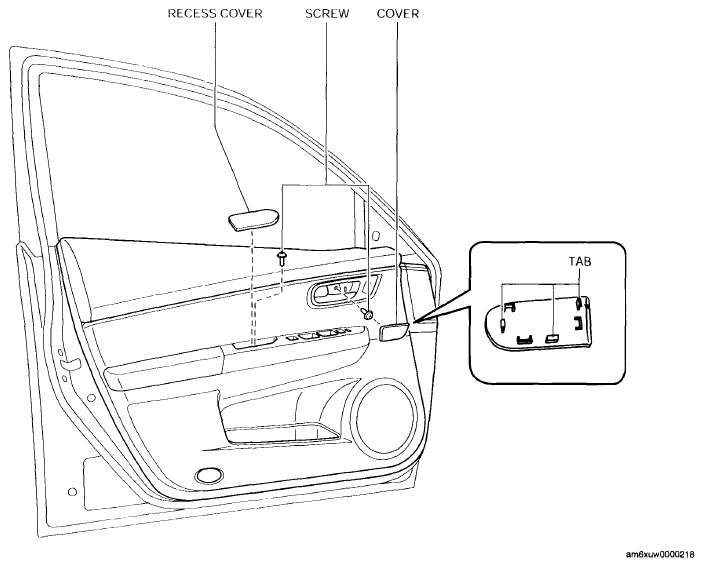

Fig 1: Identifying Recess Cover, Screw And Tab
Courtesy of MAZDA MOTORS CORP.
Remove the recess cover
Remove the screws
Pull in the direction of the arrow shown in the figure and remove clips from the door inner panel using a fastener remover.

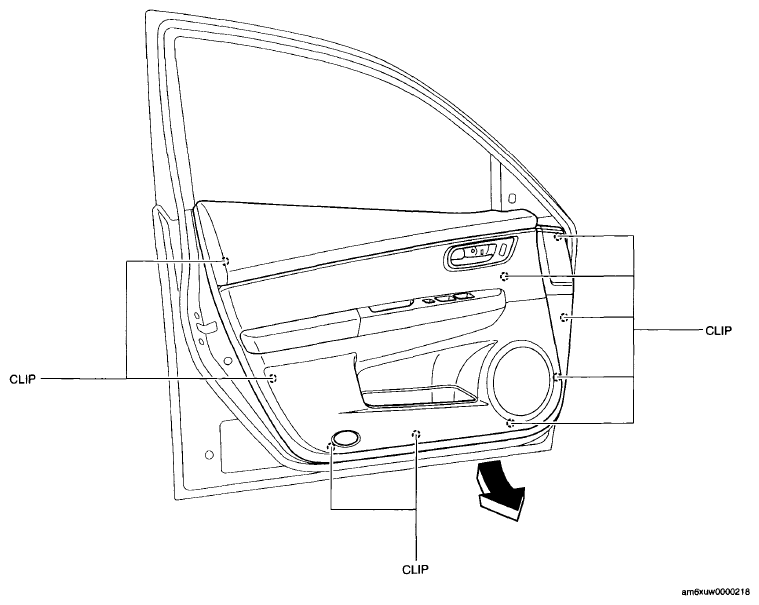

Fig 2: Pulling Front Door Trim In Direction Of Arrow
Courtesy of MAZDA MOTORS CORP.
Remove the front door trim in the direction of the arrow shown in the figure.

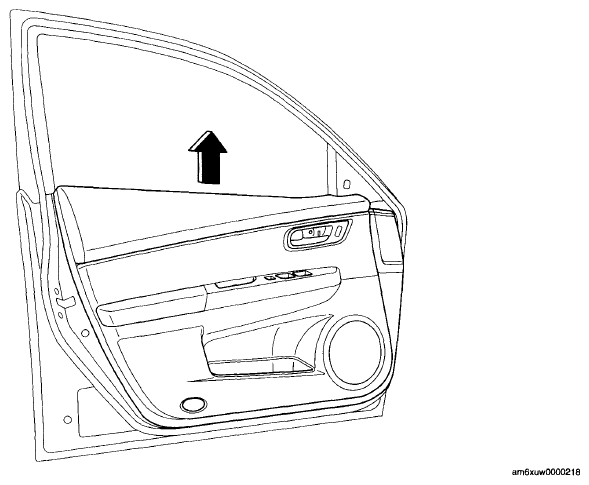

Fig 3: Identifying Front Door Trim Removal
Courtesy of MAZDA MOTORS CORP.
Remove the inner handle and move the front door trim shown in the figure.

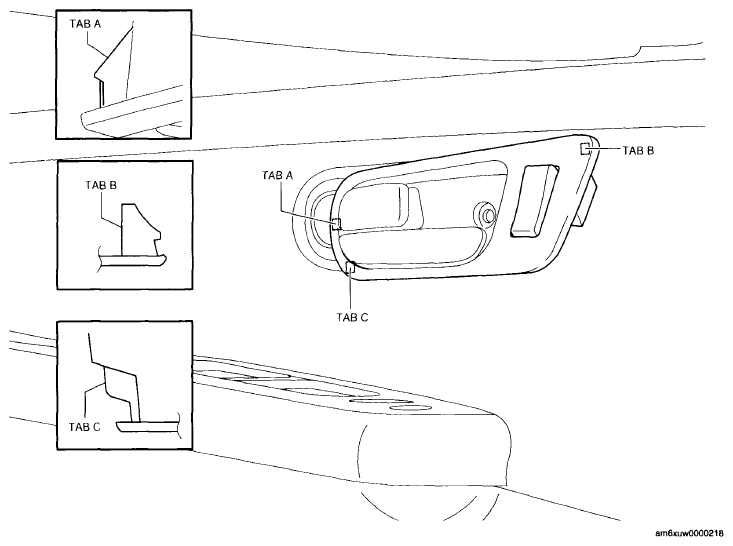

Fig 4: Identifying Inner Handle And Front Door Trim Tab Positions
Courtesy of MAZDA MOTORS CORP.
Turn the inner handle 90° in the direction of the arrow and remove it from the front door trim.

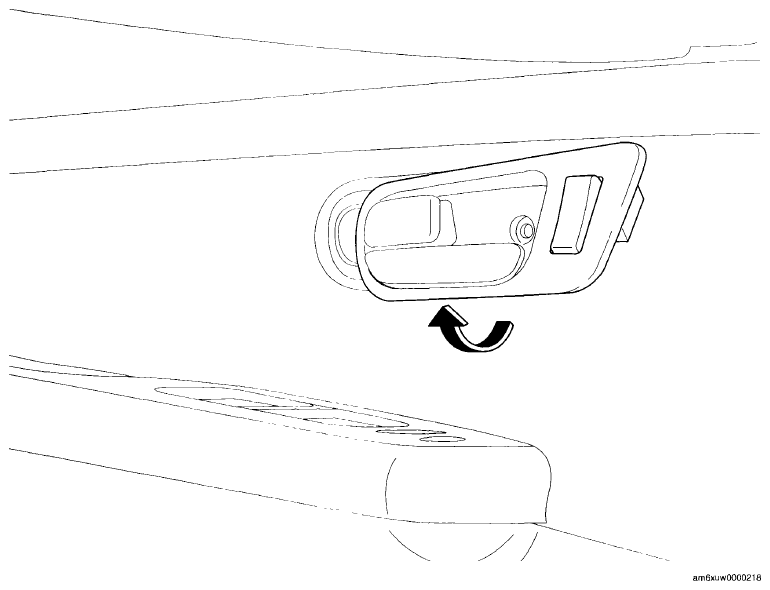

Fig 5: Turning Inner Handle
Courtesy of MAZDA MOTORS CORP.
Disconnect the driver-side power outer mirror switch connector and driver-side power window main switch connector.
Remove the door courtesy illumination bulb socket. See COURTESY LIGHT BULB REMOVAL/INSTALLATION .
Install in the reverse order of removal
