Front Sash Molding Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

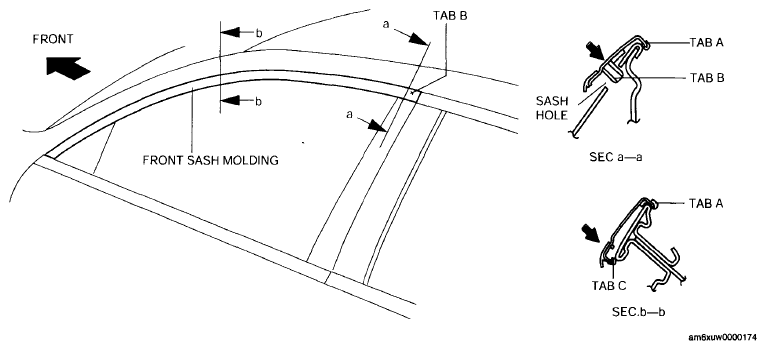

- Hook tab A to the body in the position where tabs B align with the sash holes.
- Press the front sash molding in the direction of the arrow and install tabs B to the body.CAUTION:
- Do not press the front sash molding in any place other than the rubber areas.
- Press the front sash molding from the vehicle rear in the direction shown in the arrow and install tab C.NOTE:
- After installing the front sash molding, verify that tabs A and B are connected properly to the body.
- Install the power outer mirror. See. POWER OUTER MIRROR REMOVAL/INSTALLATION )
- Install the front door trim. See. FRONT DOOR TRIM REMOVAL/INSTALLATION )
- Install the inner garnish. See. INNER GARNISH REMOVAL/INSTALLATION )
