Front BELTLINE Molding Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully open the front door glass
  2. Disconnect the negative battery cable.
  3. Remove the inner garnish. See. INNER GARNISH REMOVAL/INSTALLATION )
  4. Remove the front door trim. See. FRONT DOOR TRIM REMOVAL/INSTALLATION )
  5. Remove the power outer mirror. See. POWER OUTER MIRROR REMOVAL/INSTALLATION )
  6. Rotate the front beltline molding in the direction of the arrow (1) shown in the figure and remove it while detaching tab B.

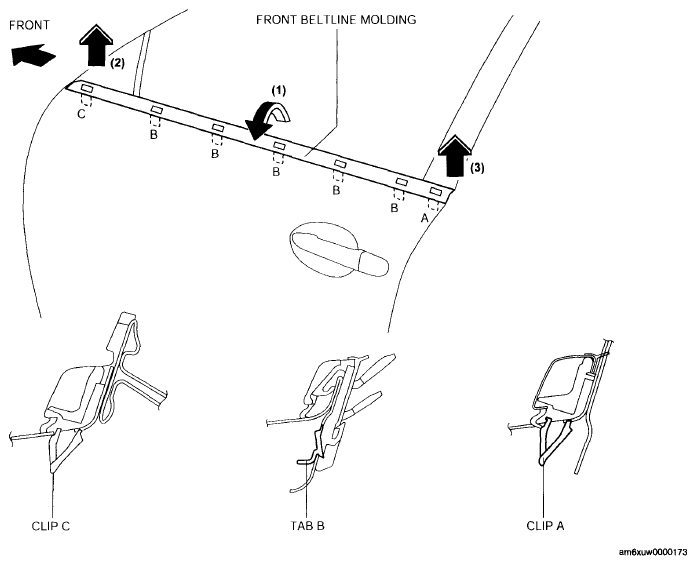

    Fig 1: View Of Front Beltline Molding Removal
    G06199427Courtesy of MAZDA MOTORS CORP.
  7. Remove clip C using a fastener remover and pull the front beltline molding in the direction of the arrow (2) shown in the figure.
  8. Remove clip A using a fastener remover and pull the front beltline molding in the direction of the arrow (3) shown in the figure.
  9. Install in the reverse order of removal.
