Generator Removal/Installation [L5]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
  • When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.
CAUTION:
  • The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct is installed securely.
  1. Disconnect the negative battery cable
  2. Remove the plug hole plate. See PLUG HOLE PLATE REMOVAL/INSTALLATION [L5] .
  3. Remove the aerodynamic under cover No. 2. See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .
  4. Remove the drive belt. See DRIVE BELT REMOVAL/INSTALLATION [L5] .
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

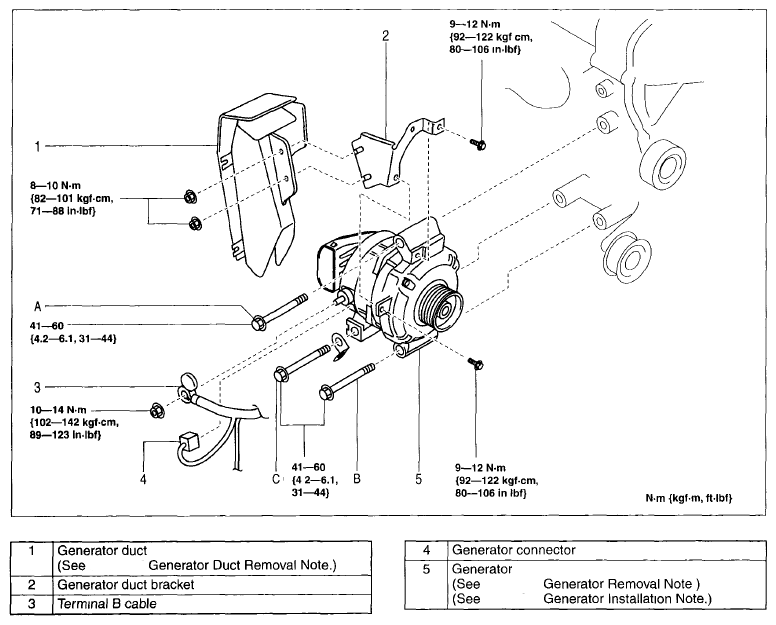

Fig 1: Generator Replacement Components With Torque Specifications
G06205126Courtesy of MAZDA MOTORS CORP.
