Blind Spot Monitoring (BSM) Bracket Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the rear combination light. See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .
- Remove the rear bumper. See REAR BUMPER REMOVAL/INSTALLATION .
- Remove the BSM control module. See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION .

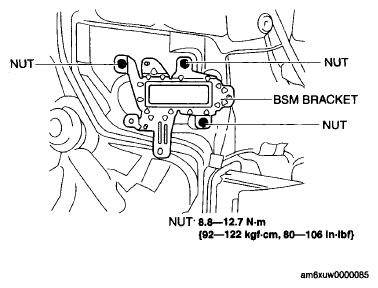

- Remove the nuts.
- Remove the BSM bracket.
- Install in the reverse order of removal.
- Perform the blind spot monitoring radar test. See BLIND SPOT MONITORING (BSM) RADAR TEST .
