Windshield Washer Hose Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front mudguard (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
  3. Disconnect the windshield washer hose A from the windshield washer motor.

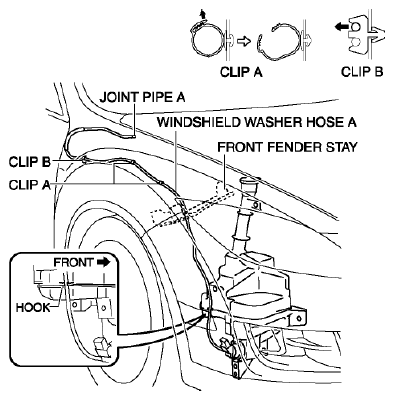

    Fig 1: Removing Windshield Washer Hose A And Clips
    G08144911
  4. Remove the windshield washer hose A from the clip A, B.
  5. Disconnect the windshield washer hose from the joint pipe A.
  6. Remove the windshield washer hose A.
  7. Remove the joint pipe A.
  8. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  9. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  10. Disconnect the windshield washer hose B from the check valve.
  11. Remove the windshield washer hose B.
  12. Remove the check valve.
  13. Disconnect windshield washer hose C from the joint pipe B.
  14. Remove the windshield washer hose C.
  15. Remove the joint pipe B.
  16. Disconnect the windshield washer hose E from the windshield washer nozzle (RH).
  17. Remove the windshield washer hose D.
  18. Remove the windshield washer hose D from the hook.
  19. Disconnect the windshield washer hose E from the joint pipe C.
  20. Remove the windshield washer hose E.
  21. Remove the joint pipe C.
  22. Remove the windshield washer hose F from the hook.
  23. Disconnect the windshield washer hose F from the windshield washer nozzle (LH).
  24. Remove the windshield washer hose F.

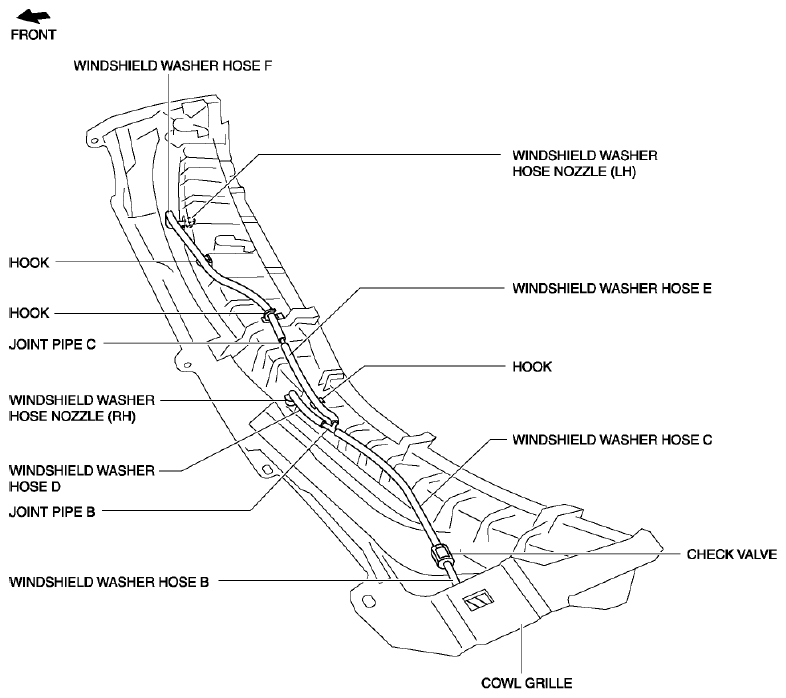

    Fig 2: Identifying Windshield Washer Hose Related Parts
    G08144912
  25. Install in the reverse order of removal.
